Inspection Procedure

  1. INSPECT ECM (+B VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the ECM connectors.

      Standard Voltage

      VOLTAGE CHART

      Tester Connections Specified Conditions
      +B (E8-1) - E1 (E4-3) 9 to 14 V
      3. Fig 1: Identifying E4 ECM Connector Terminals
      G05198368Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    NG: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the negative battery cable.
    2. Disconnect the E4 ECM connector.
    3. Check the resistance.

      Standard Resistance

      RESISTANCE REFERENCE CHART

      Tester Connections Specified Conditions
      E1 (E4-3) - Body ground Below 1 Ω
    4. Reconnect the ECM connector.
    5. Reconnect the negative battery cable.
      6. Fig 2: Identifying E4 ECM Connector Terminal
      G05198369Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  3. INSPECT ECM (IG SW VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the ECM connectors.

      Standard Voltage

      VOLTAGE CHART

      Tester Connections Specified Conditions
      IG SW (E8-9) - E1 (E4-3) 9 to 14V
      3. Fig 3: Identifying E4 ECM Connector Terminals
      G05198370Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    OK:  Go to step  6

    NG: Go to Next Step

  4. CHECK FUSE (AM2 AND IGN)
    1. Check the AM2 fuse.
      1. Remove the AM2 fuse from the engine room R/B.
      2. Check the AM2 fuse resistance.

        Standard Resistance:

        Below 1 Ω

      3. Reinstall the AM2 fuse.
    2. Check the IGN fuse.
      1. Remove the IGN fuse from the driver side J/B.
      2. Check the IGN fuse resistance.

        Standard Resistance:

        Below 1 Ω

      3. Reinstall the IGN fuse.

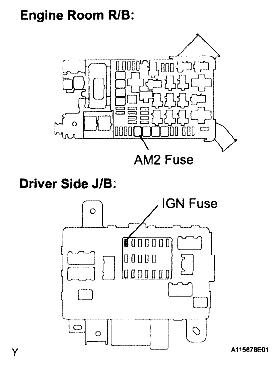

      3. Fig 4: Removing Circuit Opening (C/OPN) Relay From Engine Room R/B
      G05198371Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED TO FUSE

    OK: Go to Next Step

  5. INSPECT IGNITION OR STARTER SWITCH ASSEMBLY
    1. Disconnect the 17 ignition switch connector.
    2. Check the resistance.

      Standard Resistance

      RESISTANCE REFERENCE CHART

      Ignition Switch Positions Tester Connections Specified Conditions
      LOCK All Terminals 10 kΩ or higher
      ACC 2-4 Below 1 Ω
      ON 1-4,1-6,2-4, 3-4,5-6 Below 1 Ω
      START 1-4, 3-4, 5-6, 5-7 Below 1 Ω
    3. Reconnect the ignition switch connector.
      4. Fig 5: Identifying Ignition Switch Connector Terminals
      G05198237Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE IGNITION OR STARTER SWITCH ASSEMBLY

    OK : CHECK AND REPAIR HARNESS AND CONNECTOR (BATTERY - IGNITION SWITCH, IGNITION SWITCH - ECM)

  6. INSPECT ECM (MREL VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the ECM connectors.

      Standard Voltage

      VOLTAGE CHART

      Tester Connections Specified Conditions
      MREL (E8-8) - E1 (E4-3) 9 to 14 V
      3. Fig 6: Identifying E4 And E8 ECM Connector Terminals
      G05198373Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE ECM

    OK: Go to Next Step

  7. CHECK FUSE (EFI)
    1. Remove the EFI fuse from the engine room R/B.
    2. Check the EFI fuse resistance.

      Standard Resistance:

      Below 1 Ω

    3. Reinstall the EFI fuse.
      4. Fig 7: Checking Fuse (EFI Fuse)
      G05198228Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED TO FUSE

    OK: Go to Next Step

  8. INSPECT EFI RELAY
    1. Remove the EFI relay from the engine room R/B.
    2. Check the EFI relay resistance.

      Standard Resistance

      RESISTANCE REFERENCE CHART

      Tester Connections Specified Conditions
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
    3. Reinstall the EFI relay.
      4. Fig 8: Checking Circuit Opening Relay Resistance
      G05198087Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE EFI RELAY

    OK: Go to Next Step

  9. CHECK HARNESS AND CONNECTOR (EFI RELAY - ECM, EFI RELAY - BODY GROUND)
    1. Check the harness and connector between the EFI relay and ECM.
      1. Remove the EFI relay from the engine room R/B.
      2. Disconnect the E8 ECM connector.
      3. Check the resistance.

        Standard Resistance (Check for open)

        RESISTANCE REFERENCE CHART

        Tester Connections Specified Conditions
        Engine room R/B (EFI relay terminal 1) - MREL (E8-8) Below 1 Ω
        Engine room R/B (EFI relay terminal 3) - +B (E8-1) Below 1 Ω

        Standard Resistance (Check for short)

        RESISTANCE REFERENCE CHART

        Tester Connections Specified Conditions
        Engine room R/B (EFI relay terminal 1) or MREL (E8-6) - Body ground 10 kΩ or higher
        Engine room R/B (EFI relay terminal 3) or +B (E8-1) - Body ground 10 kΩ or higher
      4. Reconnect the ECM connector.
      5. Reinstall the EFI relay.
    2. Check the harness and connector between the EFI relay and body ground.
      1. Remove the EFI relay from the engine room R/B.
      2. Check the resistance.

        Standard Resistance (Check for open):

        RESISTANCE REFERENCE CHART

        Tester Connections Specified Conditions
        Engine room R/B (EFI relay terminal 2) - Body ground Below 1 Ω
      3. Reinstall the EFI relay.

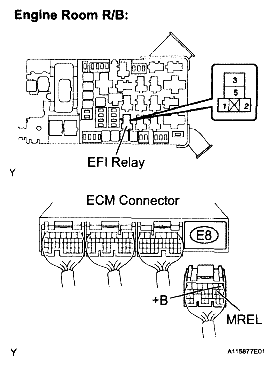

      3. Fig 9: Disconnecting E8 ECM Connector Terminals
      G05198376Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : CHECK AND REPLACE HARNESS AND CONNECTOR (TERMINAL 5 OF EFI RELAY - BATTERY POSITIVE TERMINAL)
