Inspection Procedure

  1. INSPECT ECM (+B VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage between the terminals of the E8 and E6 ECM connectors.

      Standard Voltage

      TESTER CONNECTIONS AND SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      +B (E8-1) - E1 (E6-1) 9 to 14 V
      3. Fig 1: ECM Power Source Circuit Diagram
      G05197968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

    NG: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the E6 ECM connector.
    2. Check the resistance.

      Standard Resistance (Check for open)

      TESTER CONNECTIONS AND SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      E1 (E6-1) - Body ground Below 1 Ω
    3. Reconnect the ECM connector.
      4. Fig 2: Identifying E6 ECM Connector
      G05197969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  3. INSPECT ECM (IG SW VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage between the terminals of the E8 and E6 ECM connectors.

      Standard Voltage

      TESTER CONNECTIONS AND SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      IG SW (E8-9) - E1 (E6-1) 9 to 14 V
      3. Fig 3: Measuring Voltage Between Terminals Of E8 And E6 ECM Connectors
      G05197970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:  Go to step  6

    NG: Go to Next Step

  4. CHECK FUSE (IGN FUSE)
    1. Remove the IGN fuse from the driver side J/B.
    2. Check the IGN fuse resistance.

      Standard Resistance:

      Below 1 Ω

    3. Reinstall the IGN fuse.
      4. Fig 4: Removing IGN Fuse From Driver Side J/B
      G05197971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE

    OK: Go to Next Step

  5. INSPECT IGNITION OR STARTER SWITCH ASSEMBLY
    1. Disconnect the 17 ignition switch connector.
    2. Check the resistance.

      Standard Resistance

      TESTER CONNECTIONS AND SPECIFIED CONDITIONS

      Ignition Switch Positions Tester Connections Specified Conditions
      LOCK All Terminals 10 kΩ or higher
      ACC 2-4 Below 1 Ω
      ON 1-2,1-4, 5-6
      START 1-3, 1-4, 3-4, 5-6, 5-7, 6-7
    3. Reconnect the ignition switch connector.
      Fig 5: Identifying I7 Ignition Switch Connector
      G05197972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE IGNITION OR STARTER SWITCH ASSEMBLY

    OK : CHECK AND REPLACE HARNESS AND CONNECTOR (BATTERY - IGNITION SWITCH, IGNITION SWITCH - ECM)

  6. INSPECT ECM (MREL VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage between the terminals of the E6 and E8 ECM connectors.

      Standard Voltage

      TESTER CONNECTIONS AND SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      MREL (E8-8) - E1 (E6-1) 9 to 14 V
      3. Fig 6: Measuring The Voltage Between The Terminals Of The E6 And E8 ECM Connectors
      G05197973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE ECM

    OK: Go to Next Step

  7. CHECK FUSE (EFI FUSE)
    1. Remove the EFI fuse from the engine room R/B.
    2. Check the EFI fuse resistance.

      Standard Resistance:

      Below 1 Ω

    3. Reinstall the EFI fuse.
      4. Fig 7: Removing EFI Fuse From Engine Room R/B
      G05197869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE

    OK: Go to Next Step

  8. INSPECT EFI RELAY
    1. Remove the EFI relay from the engine room R/B.
    2. Check the EFI relay resistance.

      Standard Resistance

      TESTER CONNECTIONS AND SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      3-5 10 kΩ or higher
      3-5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
    3. Reinstall the EFI relay.
      4. Fig 8: Inspecting EFI Relay
      G04942976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE EFI RELAY

    OK: Go to Next Step

  9. CHECK HARNESS AND CONNECTOR (EFI RELAY- ECM, EFI RELAY - BODY GROUND)
    1. Check the harness and connector between the EFI relay and ECM.
      1. Remove the EFI relay from the engine room R/B.
      2. Disconnect the E8 ECM connector.
      3. Check the resistance.

        Standard Resistance (Check for open)

        TESTER CONNECTIONS AND SPECIFIED CONDITIONS

        Tester Connections Specified Conditions
        EFI relay (1) - MREL (E8-8) Below 1 Ω

        Standard Resistance (Check for short)

        TESTER CONNECTIONS AND SPECIFIED CONDITIONS

        Tester Connections Specified Conditions
        EFI relay (1) or MREL (E8-8) - Body ground 10 kΩ or higher
      4. Reinstall the EFI relay.
      5. Reconnect the ECM connector.

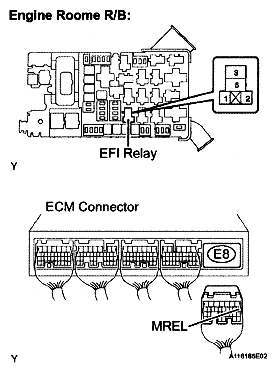

        Fig 9: Identifying E8 ECM Connector
        G05197976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the harness and connector between the EFI relay and body ground.
      1. Remove the EFI relay from the engine room R/B.
      2. Check the resistance.

        Standard Resistance (Check for open)

        TESTER CONNECTIONS AND SPECIFIED CONDITIONS

        Tester Connections Specified Conditions
        EFI relay (2) - Body ground Below 1 Ω
      3. Reinstall the EFI relay.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : CHECK AND REPAIR HARNESS AND CONNECTOR (TERMINAL +B OF ECM - BATTERY POSITIVE TERMINAL)
