System Diagram

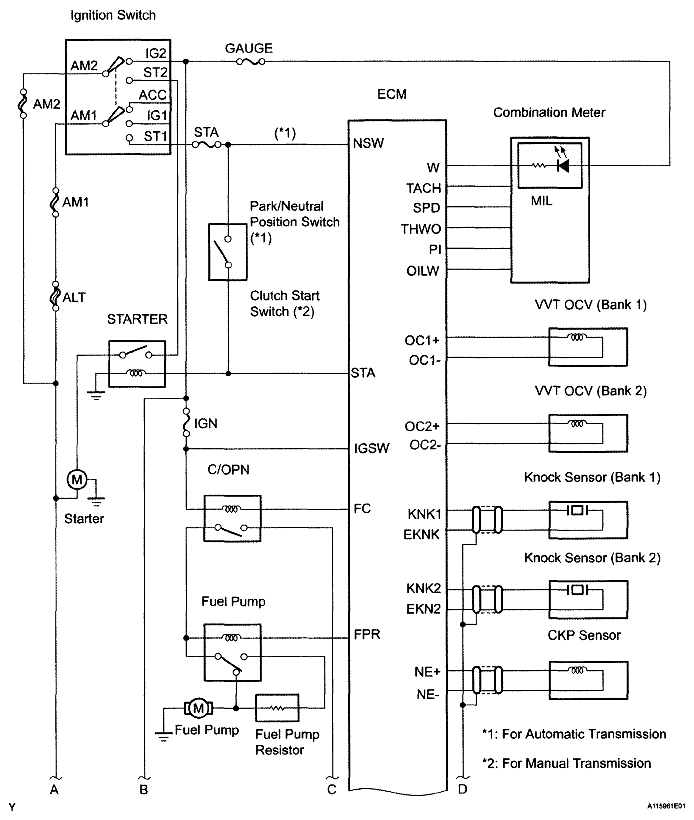

Fig 1: SFI System - System Diagram (1 Of 5)
G05197696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: SFI System - System Diagram (2 Of 5)
G05197697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

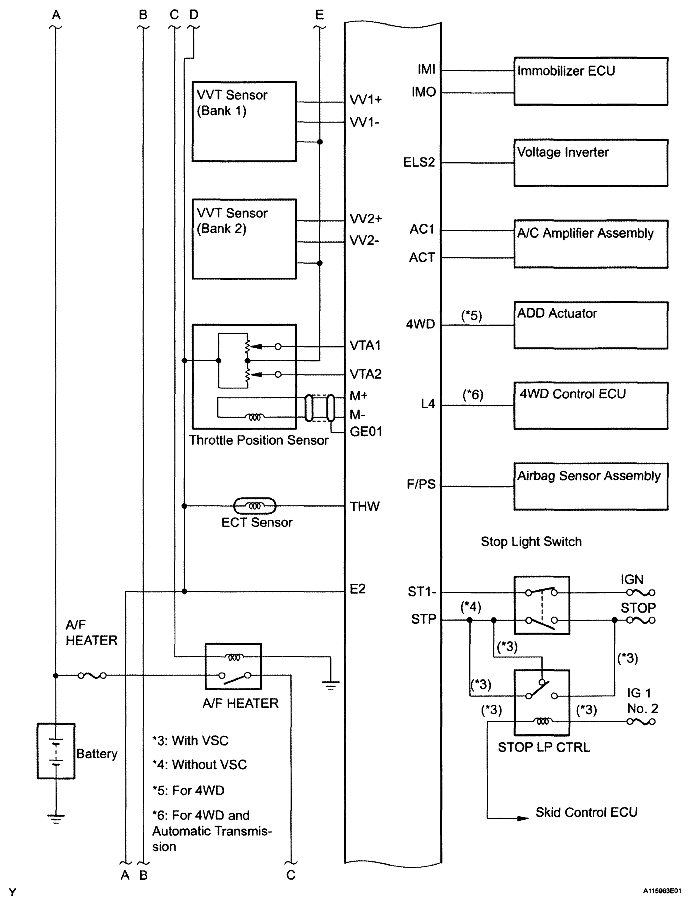

Fig 3: SFI System - System Diagram (3 Of 5)
G05197698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

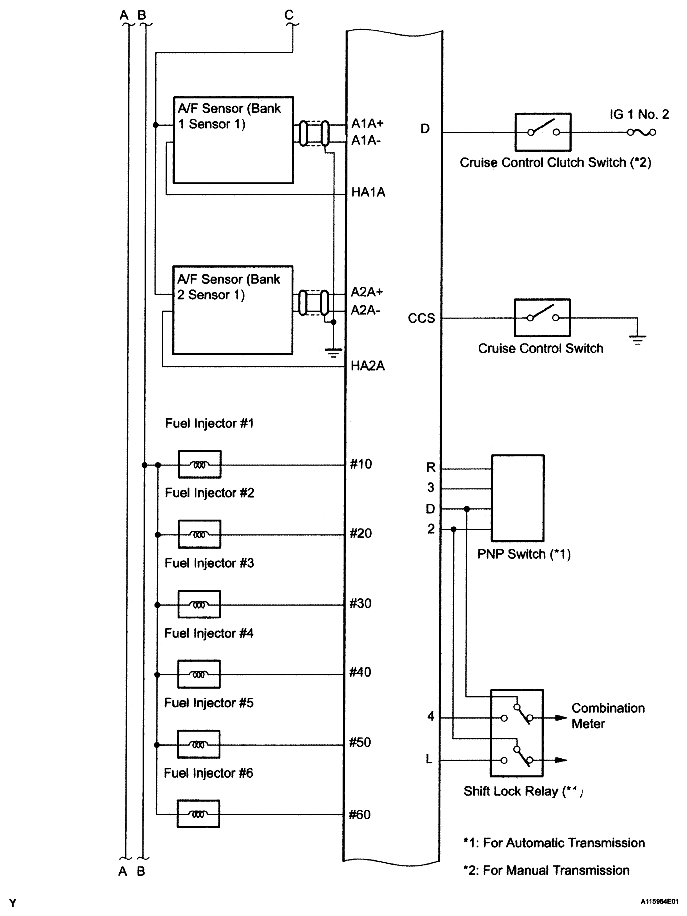

Fig 4: SFI System - System Diagram (4 Of 5)
G05197699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

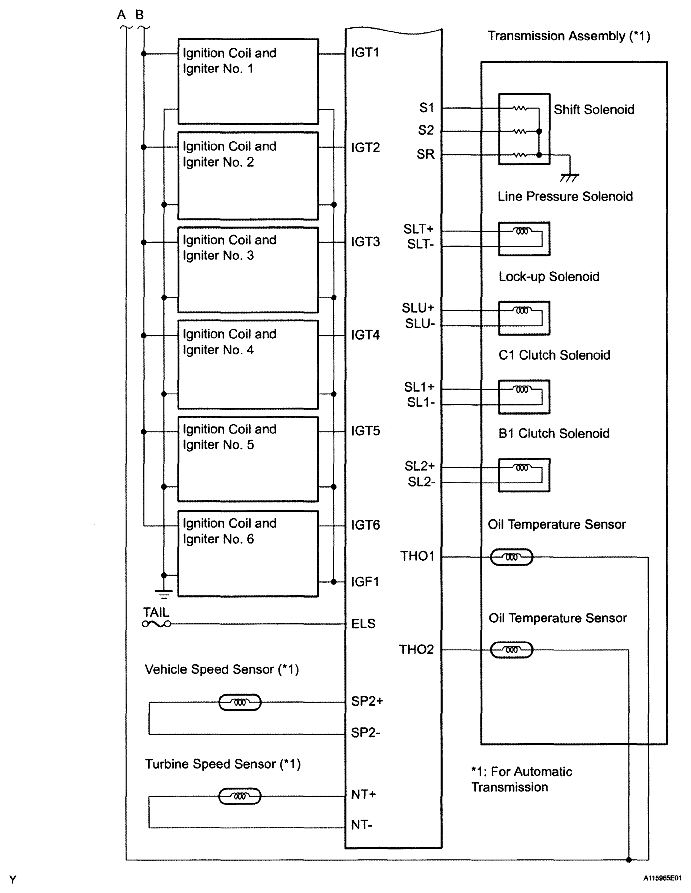

Fig 5: SFI System - System Diagram (5 Of 5)
G05197700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
