Tacoma X-Runner
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Engine Fuel System (1GR-FE)
>>
Fuel System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

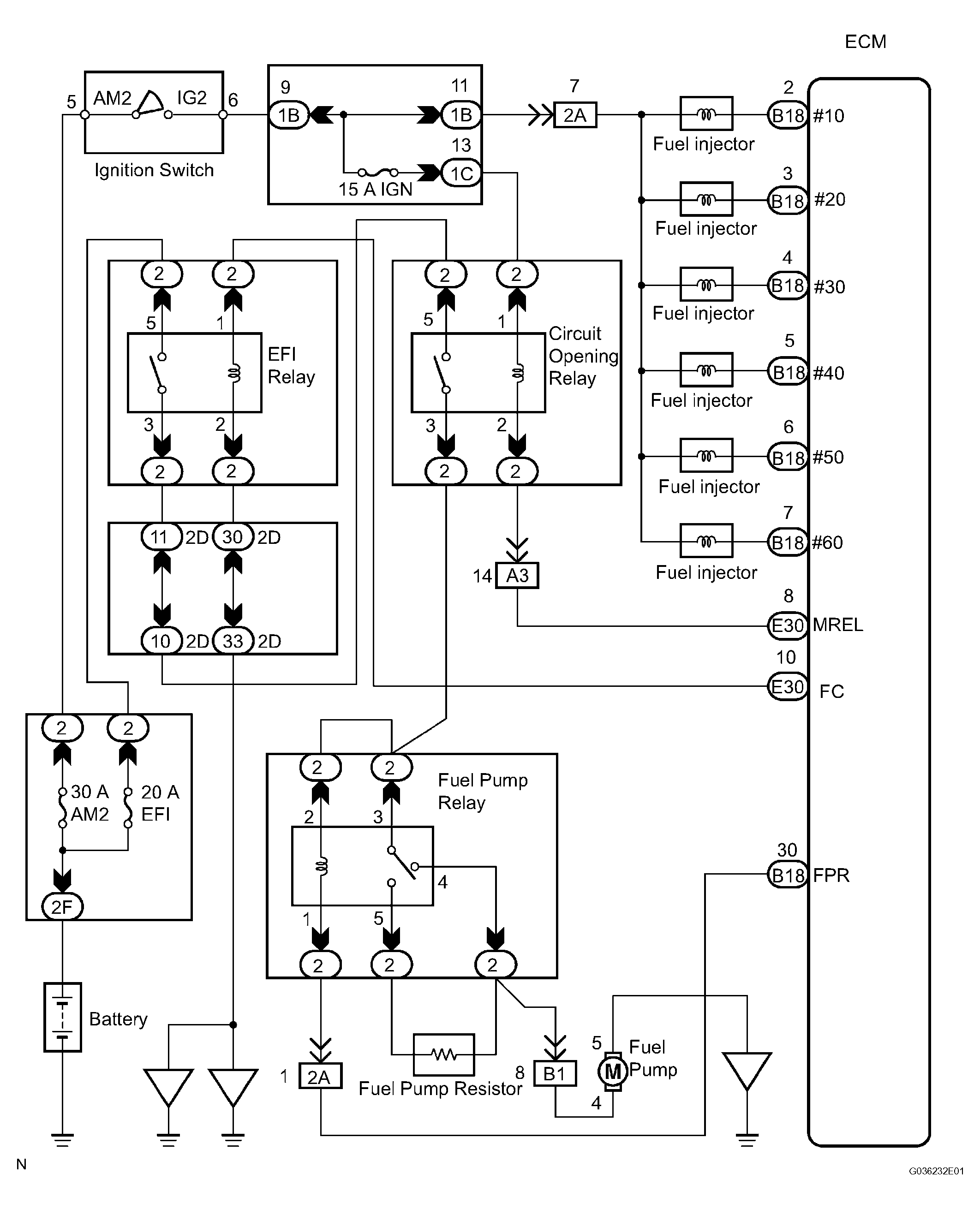

Fig 1: Identifying Fuel System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
