ACIS Control Circuit: Wiring Diagram

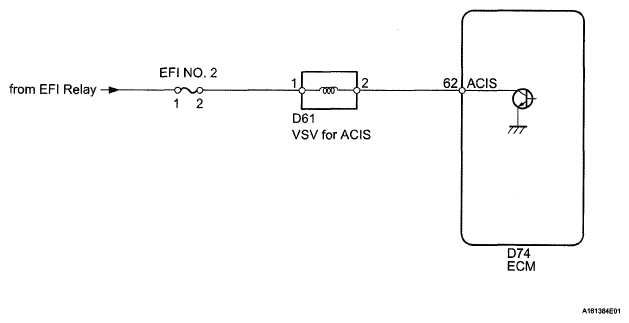

Fig 1: ACIS Control - Wiring Diagram
G05149533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
