Air Fuel Ratio Sensor: Components

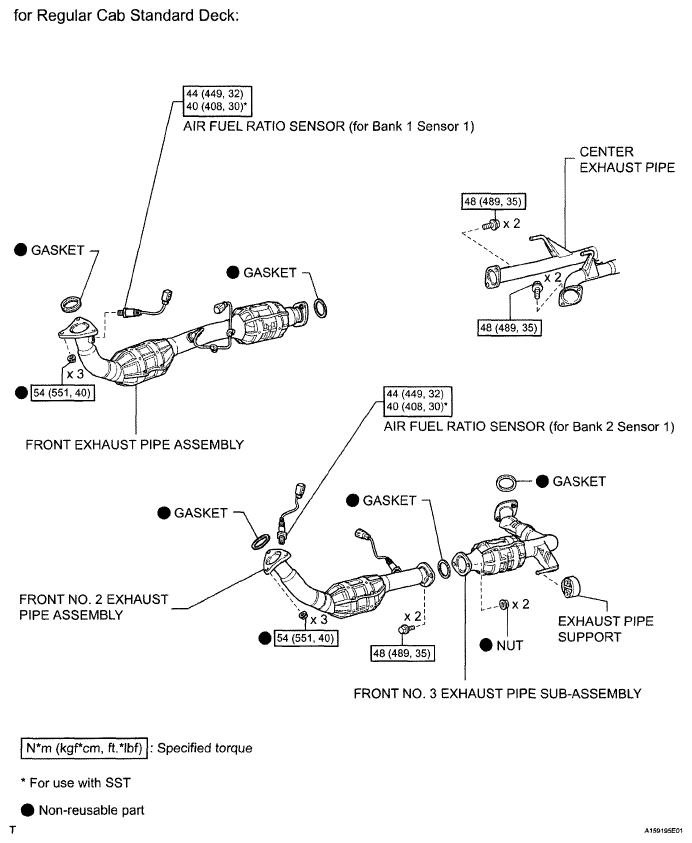

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)
G05149614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

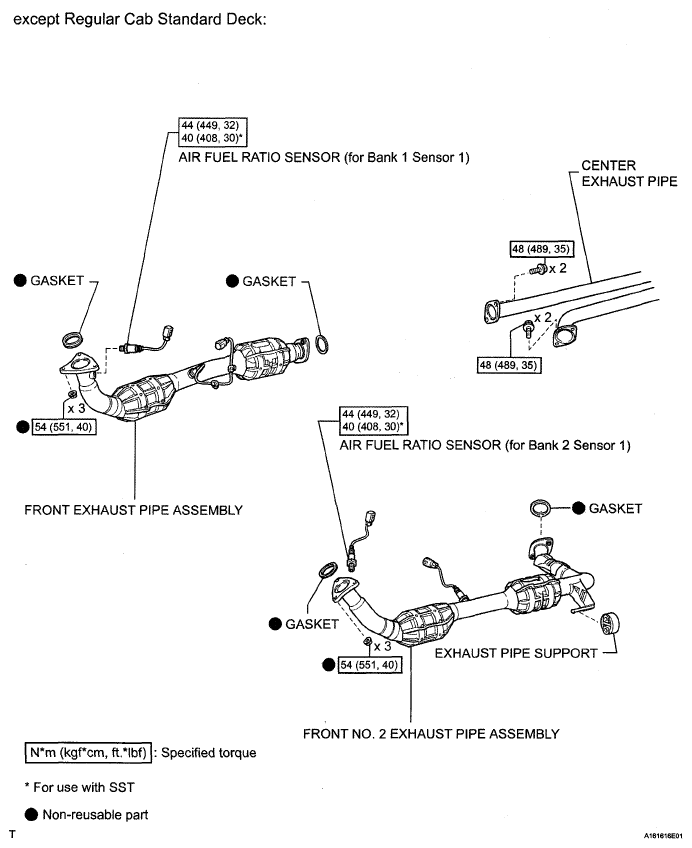

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 2)
G05149615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
