Knock Sensor: Installation

INSTALL KNOCK SENSOR
1. Install the 2 sensors with the 2 bolts as shown in the illustration.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Connect the 2 sensor connectors.

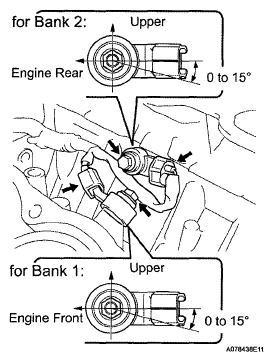

  Fig 1: Locating Knock Sensor Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 WATER OUTLET PIPE
1. Install the 3 bolts [A] and water outlet pipe.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Install the 4 wire harness clamps [B].
INSTALL CYLINDER HEAD SUB-ASSEMBLY RH (for Bank 1)
1. Install the cylinder head RH (see INSTALLATION ).
INSTALL ENGINE ASSEMBLY
1. Install the engine (see INSTALLATION ).

  Fig 2: Locating Water Outlet Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
