Customize Parameters

HINT:

The following items can be customized.

NOTE:
  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.
  1. CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER OR TECHSTREAM
    1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
      1. Intelligent tester
        TILT AND TELESCO - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display Default Contents Setting
        AUTO TILT AWAY ON ON/OFF of the auto away / return function ON/OFF
      2. Techstream

        Tilt & Telescopic

        TILT AND TELESCOPIC - CUSTOMIZE PARAMETERS TECHSTREAM

        Display Default Contents Setting
        Autoaway / Return function ON ON/OFF of the auto away / return function ON/OFF
    2. AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)
      1. Intelligent tester

        AIR CONDITIONER

        AIR CONDITIONER - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display Default Contents Setting
        SET TEMP SHIFT NORMAL Function to control the shifted temperature in relation to the displayed temperature +2 C / +1 C / NORMAL / -1 C / -2 C
        AIR INLET MODE AUTO In case of turning the A/C ON to cool down the cabin quickly, this is the function to change the mode automatically to RECIRCULATION mode MANUAL/AUTO
        COMPRESSOR MODE AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF MANUAL/AUTO
        COMPRS/DEF OPER LINK Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C is OFF MANUAL / LINK
        FOOT/DEF MODE ON Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON OFF / ON
        AUTO BLOW UP ON Function to change the blower level automatically when the defroster is ON OFF / ON
        AMBIENT TMP SFT NORMAL Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3 C / +2 C / +1 C / NORMAL / -1 C / -2 C / -3 C
      2. Techstream

        Air Conditioner

        AIR CONDITIONER - CUSTOMIZE PARAMETERS TECHSTREAM

        Display Default Contents Setting
        Set Temperature Shift Normal Function to control the shifted temperature in relation to the displayed temperature +2C/+1 C/ Normal /-1 C /-2C
        Air Inlet Mode Automatic In case of turning the A/C ON to cool down the cabin quickly, this is the function to change the mode automatically to RECIRCULATION mode Manual / Automatic
        Compressor Mode Automatic Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF Manual / Automatic
        Compressor/Air Inlet DEF Operation Link Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C is OFF Normal / Link
        Foot/DEF Auto Mode ON Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON OFF / ON
        Foot/DEF Autotic Blow Up Function ON Function to change the blower level automatically when the defroster is ON OFF / ON
        Ambient Temperature Shift Normal Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3C/+2C/+1 C/ Normal /-1 C / -2 C / -3 C
    3. AIR CONDITIONING SYSTEM (for Manual Air Conditioning System)
      1. Intelligent tester

        AIR CONDITIONER

        AIR CONDITIONER - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display Default Contents Setting
        AMBIENT TMP SFT NORMAL Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3 C / +2 C / +1 C / NORMAL/ - 1 C / - 2 C / - 3 C
      2. Techstream

        Air Conditioner

        AIR CONDITIONER - CUSTOMIZE PARAMETERS TECHSTREAM

        Display Default Contents Setting
        Ambient Temperature Shift Normal Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3C/+2C/+1 C / Normal /-1C / -2 C / -3 C
    4. THEFT DETERRENT SYSTEM
      1. Intelligent tester

        MAIN BODY

        MAIN BODY - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display Default Contents Setting
        WARN BY HORN ON Function that allows vehicle horns and theft deterrent horn to be used as warning device. ON or OFF
        PASSIVE MODE OFF Passive arming mode is function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive arming mode, theft deterrent system will judge that theft is taking place and switch to alarm sounding state if one of following operations are not performed within 14 seconds (see entry delay below) after door is opened:
        • Unlock any door by key or wireless operation
        • Turn ignition switch ON
        		 ON or OFF
        ENTRY DELAY 14 s Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE 0 s/14 s/30 s
        WARN BY GLS SEN* ON Function that turns glass breakage sensor ON/OFF. This function is only effective for vehicles with glass breakage sensor. ON or OFF
        HINT:
        *: w/ Glass Breakage Sensor
      2. Techstream

        Main Body

        MAIN BODY - CUSTOMIZE PARAMETERS TECHSTREAM

        Display Default Contents Setting
        Warning by Horn ON Function that allows vehicle horns and theft deterrent horn to be used as warning device. ON or OFF
        Passive Mode (Security system) OFF Passive arming mode is function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive arming mode, theft deterrent system will judge that theft is taking place and switch to alarm sounding state if one of following operations are not performed within 14 seconds (see entry delay below) after door is opened:
        • Unlock any door by key or wireless operation
        • Turn ignition switch ON
        		 ON or OFF
        Entry Delay 14 s Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE 0s/14s/30s
        Warning by Glass Broken Sensor* ON Function that turns glass breakage sensor ON/OFF. This function is only effective for vehicles with glass breakage sensor. ON or OFF
        HINT:
        *: w/ Glass Breakage Sensor
    5. LIGHTING SYSTEM
      1. Intelligent Tester

        MAIN BODY

        MAIN BODY - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display Default Contents Setting
        I/L ON / ACC OFF ON Illuminates light when ignition switch turned to ACC (Room light illuminated when interior light switch set to DOOR) ON/OFF
        LIGHTING TIME 15s Changes illumination duration after door closure (It will quickly fade out when turning ignition switch ON) 7.5s/15s/30s
        I/L ON / UNLOCK ON Function to light up room light when unlocking with door key cylinder (Room light illuminated when interior light switch set to DOOR) ON / OFF
        LIGHT OFF DELAY 30s Function to continue illuminating headlight for certain period of time after closing all doors with ignition switch turned from ON to OFF under condition that light control switch is at HEAD or AUTO with the headlight ON OFF / 30s / 60s / 90s
        SENSITIVITY NORMAL Function to adjust sensitivity of lighting illumination*1 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
        DISP EX ON SEN NORMAL Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light*2 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
        DISP EX OFF SEN NORMAL Changes brightness when canceling lowering lights such as combination meter indicator light, A/C indicator light, and clock light*3 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
        HINT:
        *1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

        *1

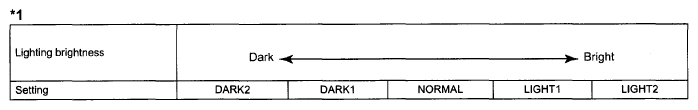

        Fig 1: Lighting System Chart (1 Of 3)
        G05157044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        *2

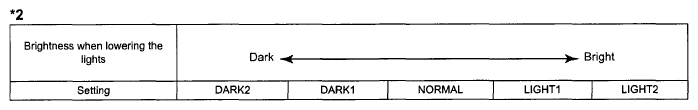

        Fig 2: Lighting System Chart (2 Of 3)
        G05157045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        *3

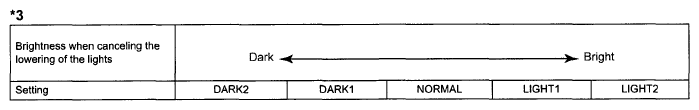

        Fig 3: Lighting System Chart (3 Of 3)
        G05157046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Techstream

        Main Body

        MAIN BODY - CUSTOMIZE PARAMETERS TECHSTREAM

        Display Default Contents Setting
        I/L ON / ACC OFF ON Illuminates light when ignition switch turned to ACC (Room light illuminated when interior light switch set to DOOR) ON / OFF
        Lighting Time 15s Changes illumination duration after door closure (It will quickly fade out when turning ignition switch ON) 7.5s/15s/30s
        I/L ON / Unlock ON Function to light up room light when unlocking with door key cylinder (Room light illuminated when interior light switch set to DOOR) ON / OFF
        Light OFF Delay 30s Function to continue illuminating headlight for certain period of time after closing all doors with ignition switch turned from ON to OFF under condition that light control switch is at HEAD or AUTO with the headlight ON OFF / 30s / 60s / 90s
        Sensitivity NORMAL Function to adjust sensitivity of lighting illumination*1 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
        Disp Ex ON Sen NORMAL Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light*2 LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
        Disp Ex OFF Sen NORMAL Changes brightness when canceling lowering lights such as combination meter indicator light, A/C indicator light, and clock light*3 LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
        HINT:
        *1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

        *1

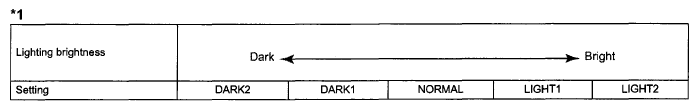

        Fig 4: Lighting System Chart (1 Of 3)
        G05157047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        *2

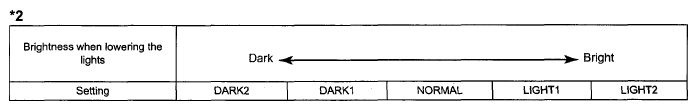

        Fig 5: Lighting System Chart (2 Of 3)
        G05157048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        *3

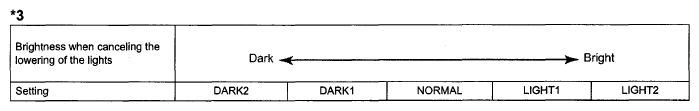

        Fig 6: Lighting System Chart (3 Of 3)
        G05157049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. POWER DOOR LOCK CONTROL SYSTEM
      1. Intelligent tester

        MAIN BODY

        MAIN BODY - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display Default Contents Setting
        UNLK/KEY TWICE ON Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For OFF setting, turning it once unlocks all doors. ON/OFF
        AUTO LOCK OFF Function that locks all doors when vehicle speed reaches a certain level. ON/OFF
        AUTO LOCK/SHIFT ON With engine running and all doors closed, function that locks all doors when lever is moved to P from any position other than P. ON/OFF
        AUTO UNLK/ SHIFT ON Function that unlocks all doors when lever is moved to P from any position other than P while ignition switch is ON. ON/OFF
        ALL UNLK/OPN-CL OFF Function that unlocks all other doors when opening driver door within 10 seconds after turning ignition switch ON. ON/OFF
      2. Techstream

        Main Body

        MAIN BODY - CUSTOMIZE PARAMETERS TECHSTREAM

        Display Default Contents Setting
        Unlock Key Twice ON Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For OFF setting, turning it once unlocks all doors. ON/OFF
        Auto lock OFF Function that locks all doors when vehicle speed reaches a certain level. ON/OFF
        Auto Lock/Shift ON With engine running and all doors closed, function that locks all doors when lever is moved to P from any position other than P. ON/OFF
        Auto Unlock/Shift ON Function that unlocks all doors when lever is moved to P from any position other than P while ignition switch is ON. ON/OFF
        All Unlock/Open-Close OFF Function that unlocks all other doors when opening driver door within 10 seconds after turning ignition switch ON. ON/OFF
    7. WIRELESS DOOR LOCK CONTROL SYSTEM
      1. Intelligent tester

        MAIN BODY

        MAIN BODY - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display Default Contents Setting
        HAZARD ANS BACK ON When LOCK switch on transmitter is pressed, all hazard warning lights illuminate once. When UNLOCK switch is pressed, all hazard warning lights illuminate twice. ON/OFF
        WIRLS BUZZ RESP ON Function that makes wireless buzzer sound for answer-back when transmitter LOCK / UNLOCK switch is pressed. ON / OFF
        OPEN DOOR WARN ON If door is not completely closed and transmitter LOCK switch is pressed, this function sounds a buzzer for 10 seconds. ON / OFF
        WIRELESS OPER ON ON / OFF of wireless door lock function. ON / OFF
        ALARM FUNCTION ON Operates security alarm when PANIC switch on transmitter is continuously pressed for 1 second. ON / OFF
        UNLOCK 2 OPER ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock. ON / OFF
        WIRLS AUTO LOCK ON Function to control automatic relocking of doors after unlocking with wireless door lock function. ON / OFF
        AUTO LOCK DELAY 30 seconds Function to change time until relocking after unlocking. 60 seconds/30 seconds
      2. Techstream

        Main Body

        MAIN BODY - CUSTOMIZE PARAMETERS TECHSTREAM

        Display Default Contents Setting
        Hazard Answer Back ON When LOCK switch on transmitter is pressed, all hazard warning lights illuminate once. When UNLOCK switch is pressed, all hazard warning lights illuminate twice. ON / OFF
        Wireless Buzzer Resp ON Function that makes wireless buzzer sound for answer-back when transmitter LOCK / UNLOCK switch is pressed. ON / OFF
        Open Door Warning ON If door is not completely closed and transmitter LOCK switch is pressed, this function sounds a buzzer for 10 seconds. ON / OFF
        Wireless Control ON ON / OFF of wireless door lock function. ON / OFF
        Panic Function ON Operates security alarm when PANIC switch on transmitter is continuously pressed for 1 second. ON / OFF
        Unlock 2 Operation ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock. ON / OFF
        Wireless Auto Lock ON Function to control automatic relocking of doors after unlocking with wireless door lock function. ON / OFF
        Auto Lock Time 30 seconds Function to change time until relocking after unlocking. 60 seconds/30 seconds
    8. METER / GAUGE SYSTEM
      1. Intelligent tester

        WARNING:

        WARNING - CUSTOMIZE PARAMETERS INTELLIGENT TESTER

        Display (Item) Default Contents Setting
        KEY REMND VOLUM LARGE To change volume of key reminder buzzer LARGE / MEDIUM / SMALL
        KEY REMND SOUND 1200 To change frequency of key reminder buzzer 600/900/1200
        P-SEATBELT WARN ON To change setting of passenger side seat belt warning buzzer ON / OFF
      2. Techstream

        Warning:

        WARNING - CUSTOMIZE PARAMETERS TECHSTREAM

        Display (Item) Default Contents Setting
        Key Remind Volume Large To change volume of key reminder buzzer Large / Medium / Small
        Key Remind Sound 1200 To change frequency of key reminder buzzer 600/900/1200
        P-Seatbelt Warning Buzzer ON To change setting of passenger side seat belt warning buzzer ON/OFF
    9. SLIDING ROOF SYSTEM
      1. Techstream

        Sliding Roof

        SLIDING ROOF - CUSTOMIZE PARAMETERS SLIDING ROOF

        Display (Item) Default Contents Setting
        Door Key Related Open ON Function to manually open sliding roof linked with power window if holding driver side door key for 3 seconds or more to unlock position when ignition switch is OFF ON / OFF
        Door Key Related Close ON Function to manually close sliding roof linked with power window if holding driver side door key for 3 seconds or more to lock position when ignition switch is OFF ON / OFF
        Door Key Related Operation SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window activated by holding driver side door key for 3 seconds or more to unlock position when ignition switch is OFF TILT/SLIDE
  2. CUSTOMIZING FUNCTION WITH MULTI-INFORMATION DISPLAY (w/ Multi-information Display)
    1. Using the SETUP switch and SELECT switch, the following functions can be customized through the multi-information display. Refer to the illustration below.
      • Unit setting
      • Wireless door lock control system (answer-back function, automatic lock function, 2-step unlock function)
      • Power door lock control system (automatic door lock function, automatic door unlock function)
      • Lighting system (auto light turn off function)
      • Default setting (customize setting cancel function)
        Fig 7: Customizing Function Flow Chart With Multi-Information Display (1 Of 4)
        G05157050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 8: Customizing Function Flow Chart With Multi-Information Display (2 Of 4)
        G05157051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 9: Customizing Function Flow Chart With Multi-Information Display (3 Of 4)
        G05157052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 10: Customizing Function Flow Chart With Multi-Information Display (4 Of 4)
        G05157053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        *: When setting change operation is performed by SELECT switch, writing of customized value must be performed.
