System Diagram

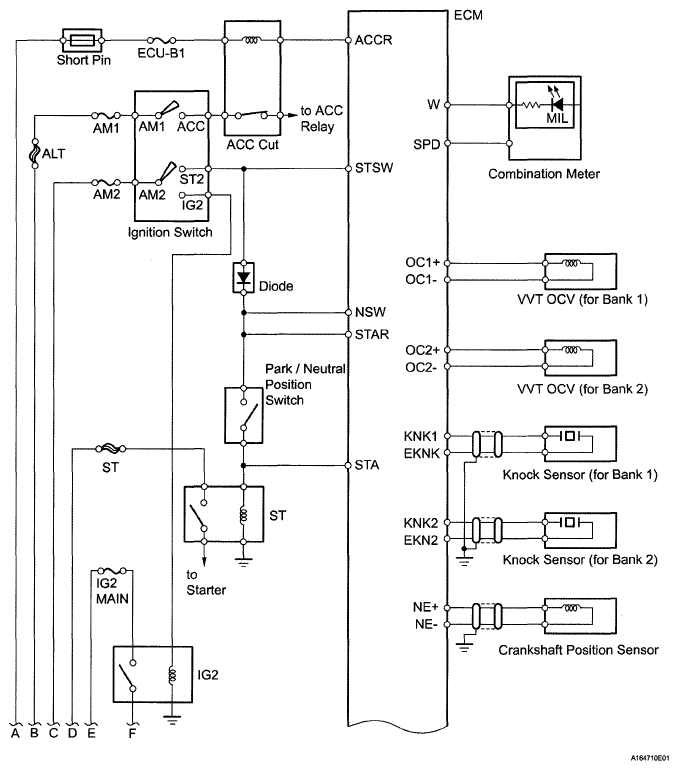

Fig 1: Engine Control System Diagram (1 Of 6)
G05150089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

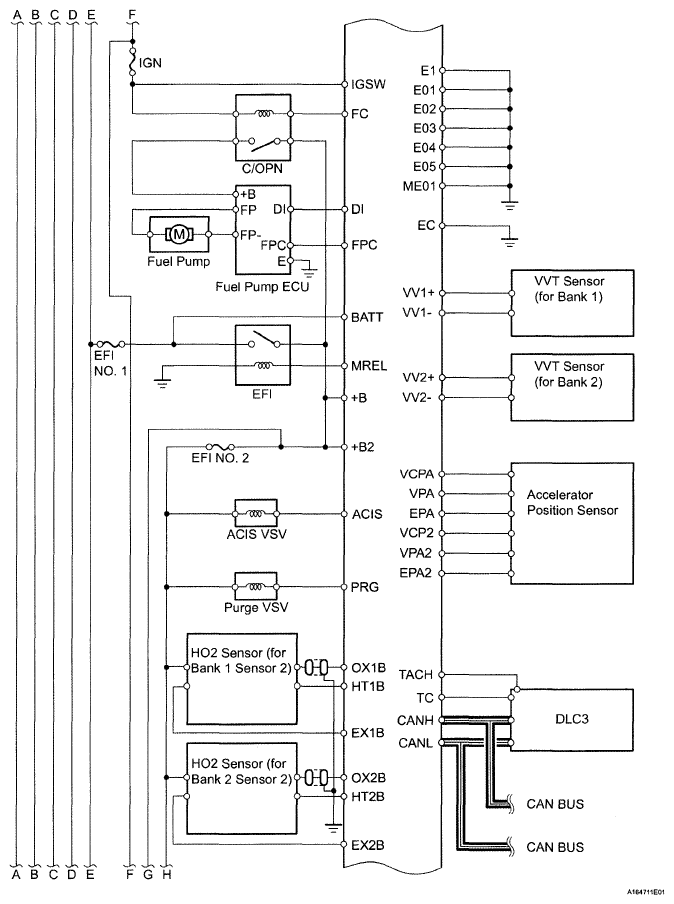

Fig 2: Engine Control System Diagram (2 Of 6)
G05150090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

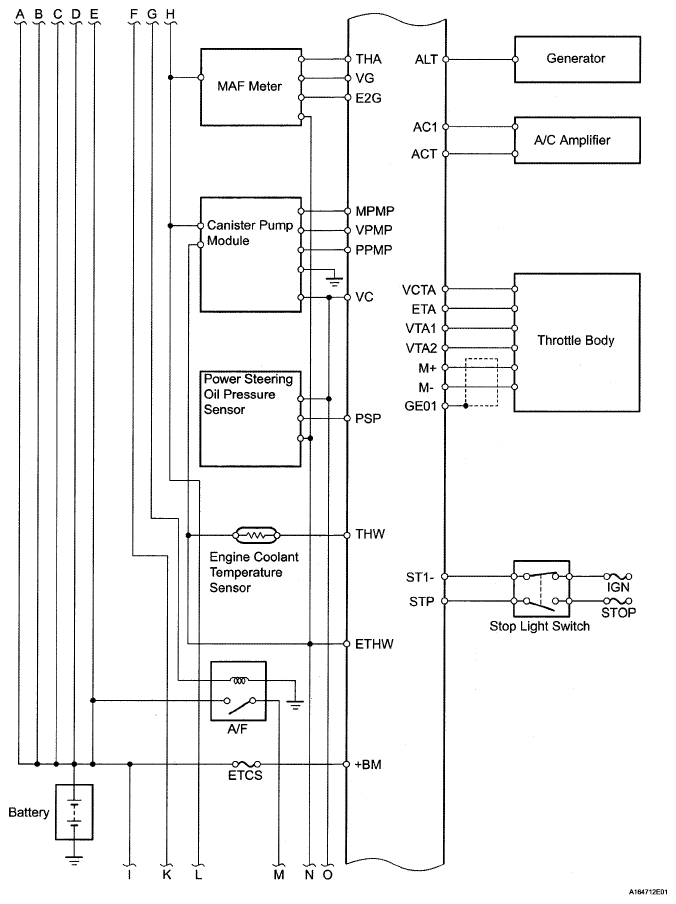

Fig 3: Engine Control System Diagram (3 Of 6)
G05150091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Control System Diagram (4 Of 6)
G05150091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

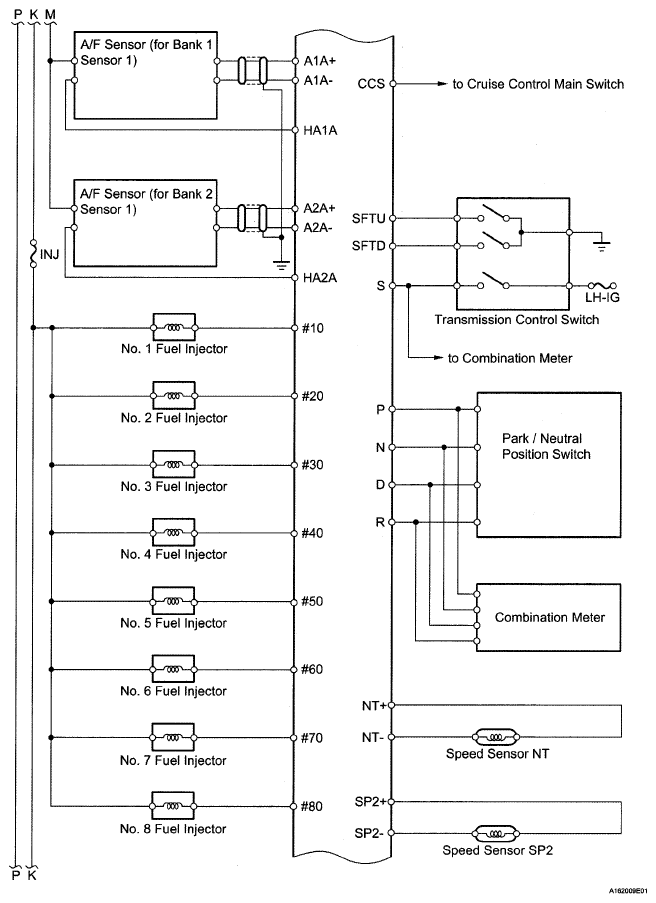

Fig 5: Engine Control System Diagram (5 Of 6)
G05150093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

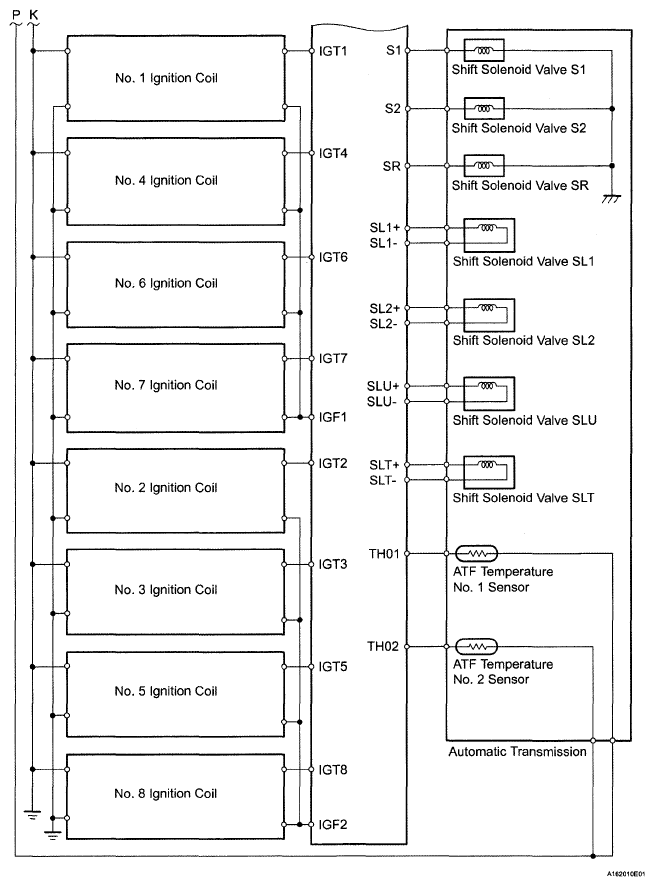

Fig 6: Engine Control System Diagram (6 Of 6)
G05150094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
