DTC P0110, P0112, P0113: Intake Air Temperature Circuit Malfunction; Intake Air Temperature Circuit Low Input; Intake Air Temperature Circuit High Input: Wiring Diagram

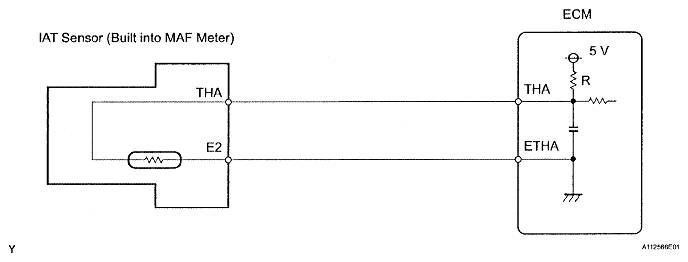

Fig 1: Identifying Intake Air Temperature Circuit Malfunction Wiring Diagram
G04828067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
