Cranking Holding Function Circuit: Wiring Diagram

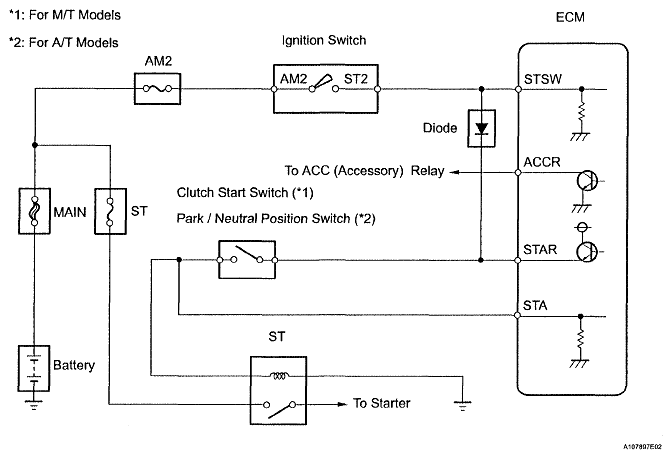

Fig 1: Identifying Cranking Holding Function Circuit Wiring Diagram
G04828347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
