Engine Control Component Parts/Control Systems Application

WARNING: This page is about a different car, the 2007 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

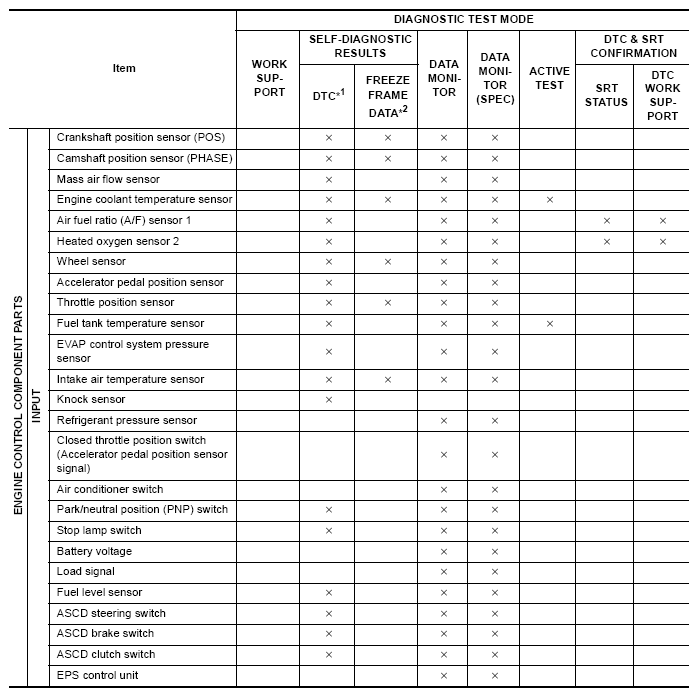

Fig 1: Engine Control Component Parts/Control Systems Application (Input)

Courtesy of NISSAN NORTH AMERICA, INC.

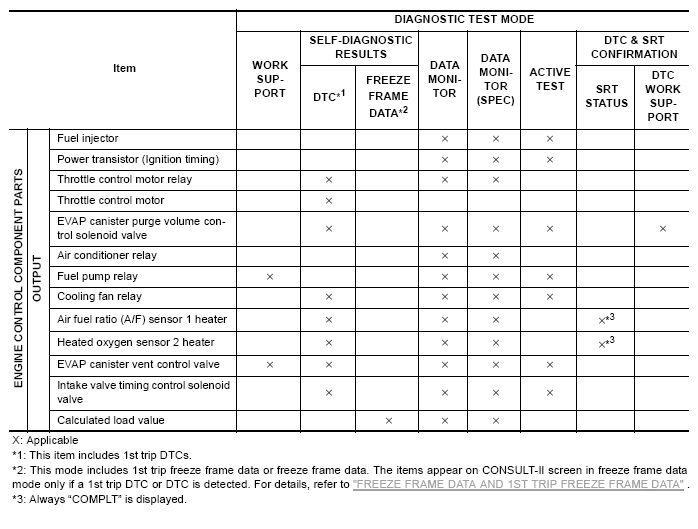

Fig 2: Engine Control Component Parts/Control Systems Application (Output)

Courtesy of NISSAN NORTH AMERICA, INC.

For Freeze Frame Data And 1st Trip Freeze Frame Data, go to FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA .
