Remote Up / Down Function does not Operate: Wiring Diagram

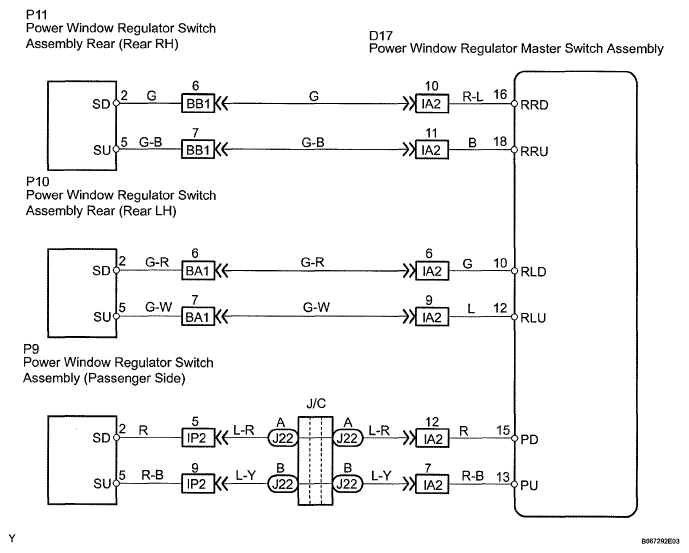

Fig 1: Identifying Remote Up / Down Function Does Not Operate - Wiring Diagram
G05557489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
