Navigation Controller Power Source Circuit: Wiring Diagram

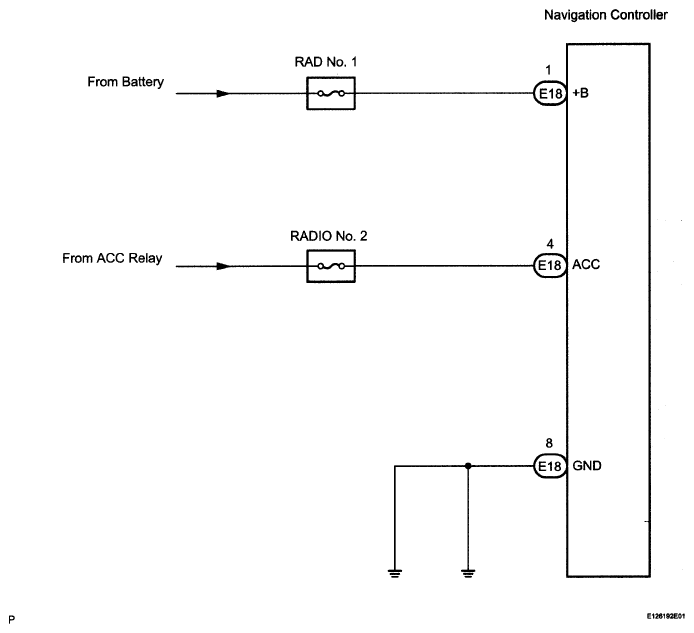

Fig 1: Navigation Controller Power Source Circuit - Wiring Diagram
G05006490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
