Key Reminder without Smart Key System: Notes

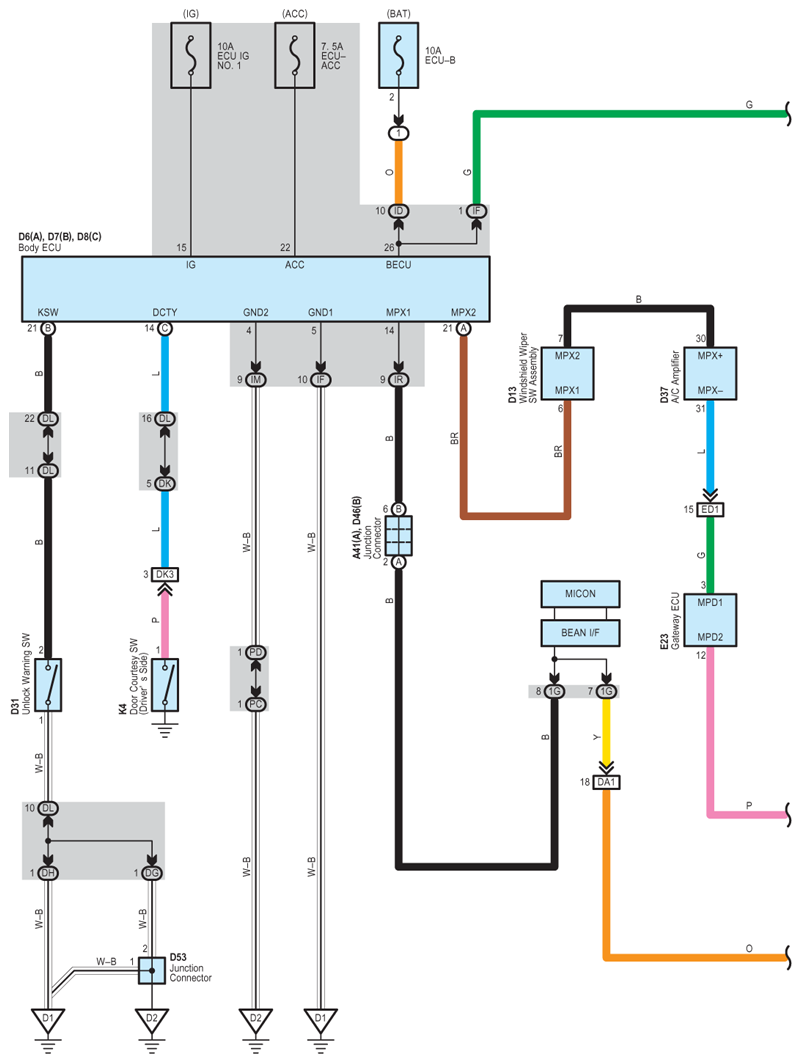

Fig 1: Key Reminder Without Smart Key System - Circuit Diagram (1 Of 2)
G07616470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

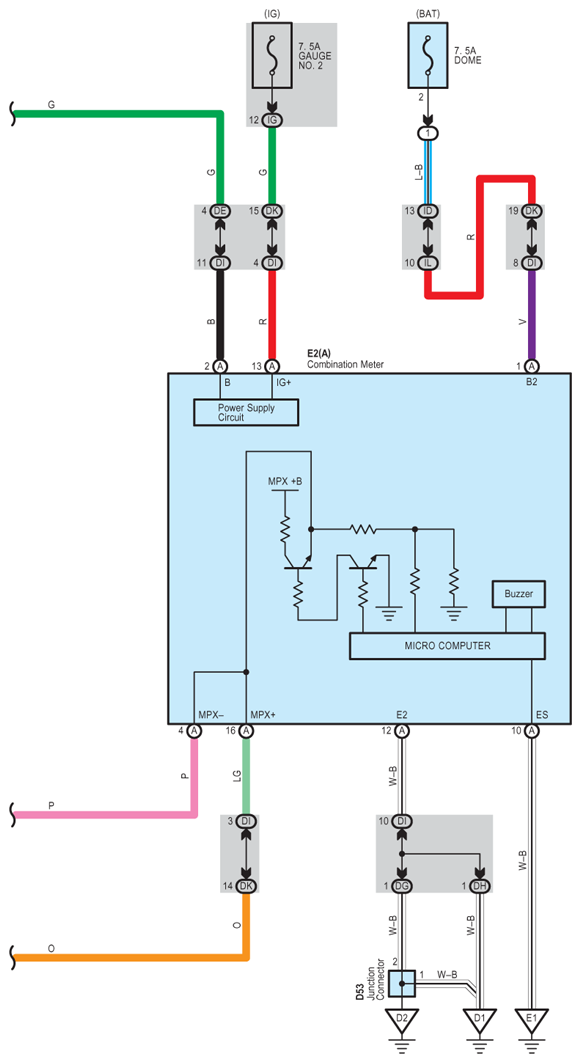

Fig 2: Key Reminder Without Smart Key System - Circuit Diagram (2 Of 2)
G07616471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
