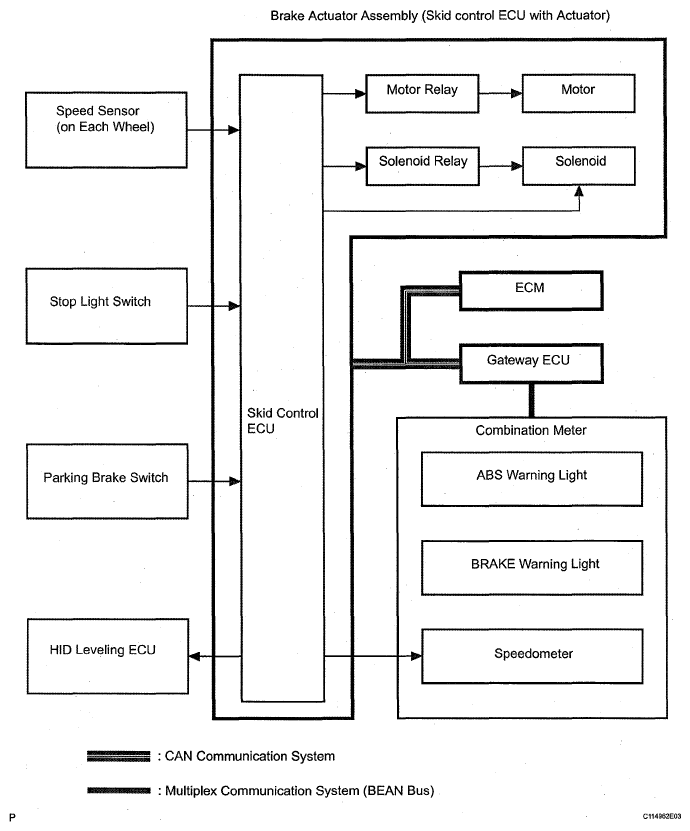

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 ECU SIGNAL REFERENCE CHART
| Transmitting ECU |
Receiving ECU |
Signals |
Communication method |
| Skid control ECU |
Combination meter |
- ABS warning light signal
- BRAKE warning light signal
|
- CAN communication system
- Multiplex communication system
|
| ECM |
Skid control ECU |
Shift position signal |
CAN communication system |
