Power Seat System for Driver's Seat without Memory: Notes

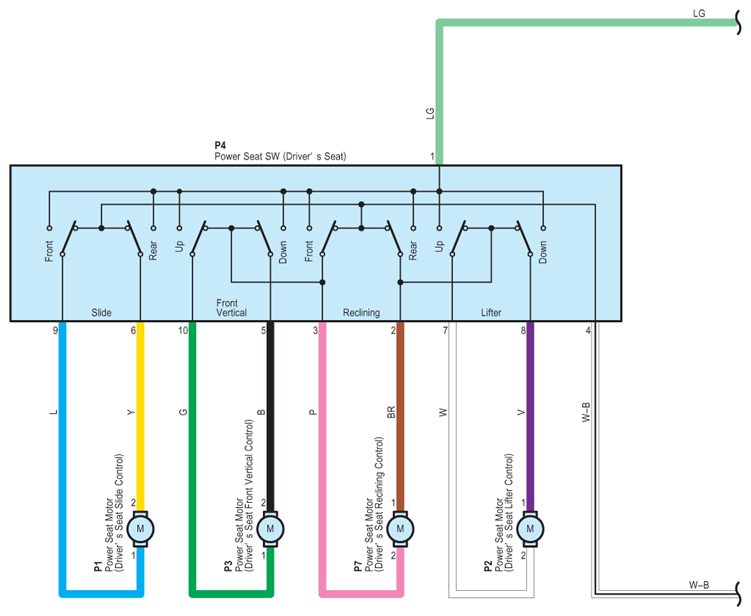

Fig 1: Power Seat For Driver's Seat Without Memory - Circuit Diagram (1 Of 2)
G07616581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

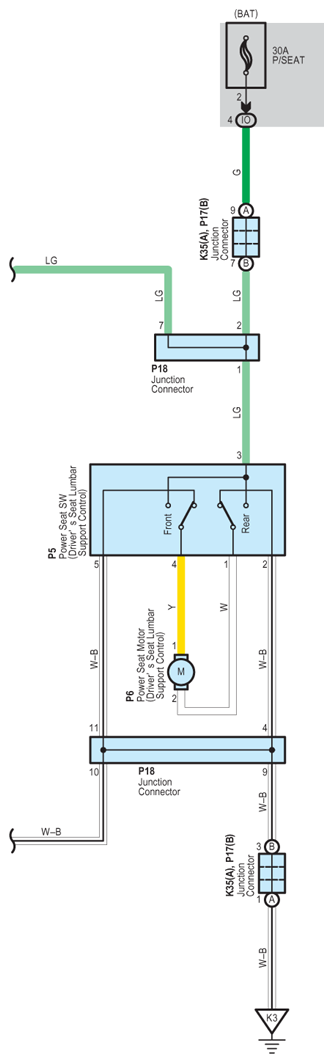

Fig 2: Power Seat For Driver's Seat Without Memory - Circuit Diagram (2 Of 2)
G07616582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
