DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram

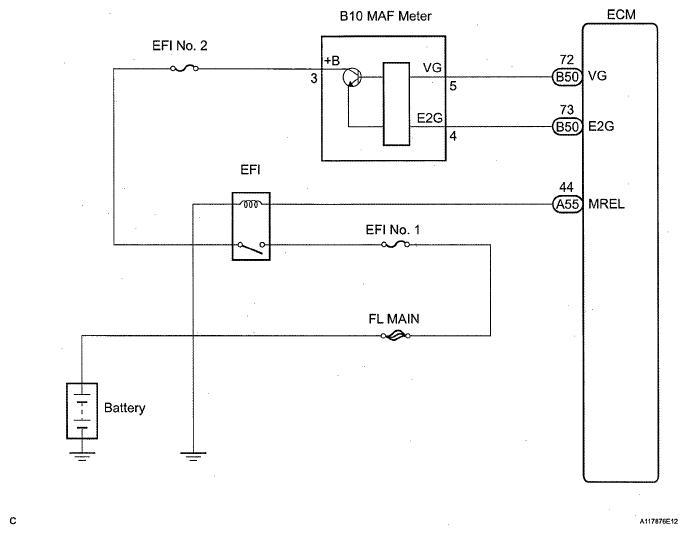

Fig 1: Mass Air Flow Meter Wiring Diagram
G05404477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
