DTC P0110: Intake Air Temperature Circuit Malfunction; DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

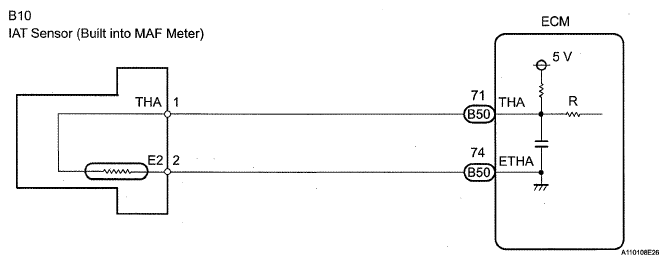

Fig 1: Intake Air Temperature Sensor - Wiring Diagram
G05404485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
