Engine Control System (2GR-FE) - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection, Installation
>>
EVAP System
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EVAP System: Wiring Diagram

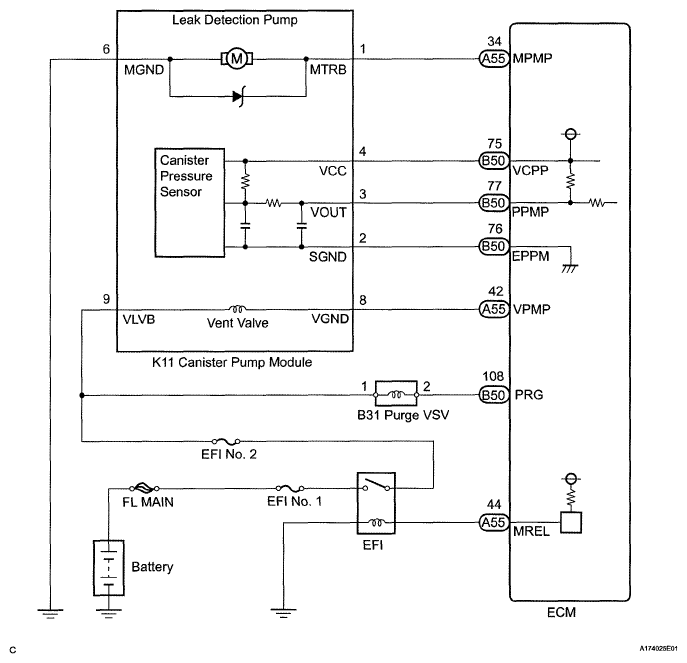

Fig 1: Canister Pump Module - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
