Inspection Procedure

IDENTIFY THE COMPONENT SHOWN BY SUB-CODE
1. Enter the diagnostic mode.

  Fig 1: Identifying Service Check Mode And Detailed Information Mode
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press the preset switch "3" to change to "Detailed Information Mode".
3. Identify the component shown by the sub-code.
  HINT:
  - "190 (radio receiver)" is the component shown by the subcode in the example shown in Fig 1.
  - For details of the DTC display, refer to "DTC CHECK/ CLEAR " .

CHECK COMPONENT SHOWN BY SUB-CODE

Select the component shown by sub-code.
HINT:

The "Bluetooth" handsfree module is built into the radio receiver. If there is a problem between the "Bluetooth" handsfree module and radio receiver, replace the radio receiver.

Component Table:

COMPONENT SHOWN BY SUB-CODE

Component	Proceed to
Radio Receiver (190)	A
Except Radio Receiver	B

A: REPLACE RADIO RECEIVER

B: Go To Next Step

CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE

Inspect the power source circuit of the component shown by the sub-code.
If the power source circuit is operating normally, proceed to the next step.

Component Table:

POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE

Component	Proceed to
Stereo component amplifier (440)	STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT

INSPECT RADIO RECEIVER

Disconnect the radio receiver connector.

Fig 2: Identifying Radio Receiver Connector Terminal F26
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Measure the resistance according to the value(s) in the table below.
Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester connection	Condition	Specified condition
ATX+(F26-5)-ATX-(F26-15)	Always	60 to 80 Ω

NG: REPLACE RADIO RECEIVER

OK: Go To Next Step

CHECK HARNESS AND CONNECTOR ("BLUETOOTH" HANDSFREE MODULE COMPONENT SHOWN BY SUB-CODE)
HINT:
- Start the check from the circuit that is near the component shown by the sub-code first.
- For details of the connectors, refer to the "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the "Bluetooth" handsfree module and the component shown by the sub-code.
  1. Disconnect all connectors between the "Bluetooth" handsfree module and the component shown by the sub-code.
  2. Check for an open or short in the AVC-LAN circuit between the "Bluetooth" handsfree module and the component shown by the sub-code.

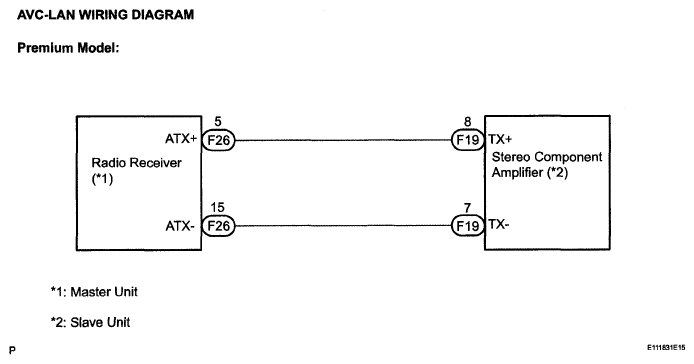

    Fig 3: AVC-LAN Wiring Diagram
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  OK: There is no open or short circuit.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step
REPLACE COMPONENT SHOWN BY SUB-CODE
1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.
  OK: Same problem does not occur.

  NG: REPLACE RADIO RECEIVER (BUILT-IN "BLUETOOTH" HANDSFREE MODULE)

  OK: END
