Inspection Procedure

IDENTIFY THE COMPONENT SHOWN BY SUB-CODE
1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component shown by the sub-code.
  HINT:
  - "110 (multi-display)" is the component shown by the sub-code in the example shown in the illustration.
  - The sub-code will be indicated by its physical address.
  - For the component list, refer to "DIAGNOSIS DISPLAY DETAILED DESCRIPTION " .

    Fig 1: Diagnostic Tool Display - LAN Mon
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE

Inspect the power source circuit of the component shown by the sub-code.

If the power source circuit is operating normally, proceed to the next step.

Component Table:

COMPONENT CHART

Component	Proceed to
Stereo component amplifier (440)	Stereo component amplifier power source circuit (See COMPONENTS )

CHECK NAVIGATION RECEIVER ASSEMBLY

Disconnect the navigation receiver assembly connector

Measure the resistance according to the value(s) in the table below.

Standard resistance

RESISTANCE SPECIFICATION

Tester connection	Condition	Specified condition
ATX+ (F9-5) - ATX- (F9-15)	Always	60 to 80 Ω

Fig 2: Identifying Navigation Receiver Assembly Connector Terminals

G04980868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE NAVIGATION RECEIVER ASSEMBLY

OK: Go to next step

CHECK HARNESS AND CONNECTOR
HINT:
- Start the check from the circuit that is near the component shown by the sub-code first.
- For details of the connectors, refer to "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the navigation receiver assembly and the component shown by the sub-code.
  1. Disconnect all connectors between the navigation receiver assembly and the component shown by the sub-code.
  2. Check for an open or short in the AVC-LAN circuit between the navigation receiver assembly and the component shown by the sub-code.

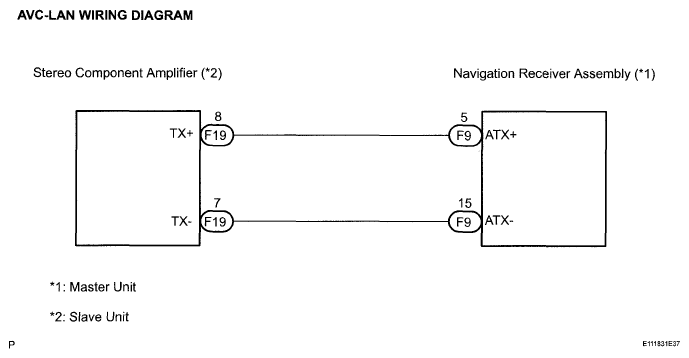

    Fig 3: AVC-LAN Wiring Diagram
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    There is no open or short circuit.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step
REPLACE COMPONENT SHOWN BY SUB-CODE
1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.
  OK:

  Same problem does not occur.
NG: REPLACE NAVIGATION RECEIVER ASSEMBLY

OK: END
