Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier: Wiring Diagram

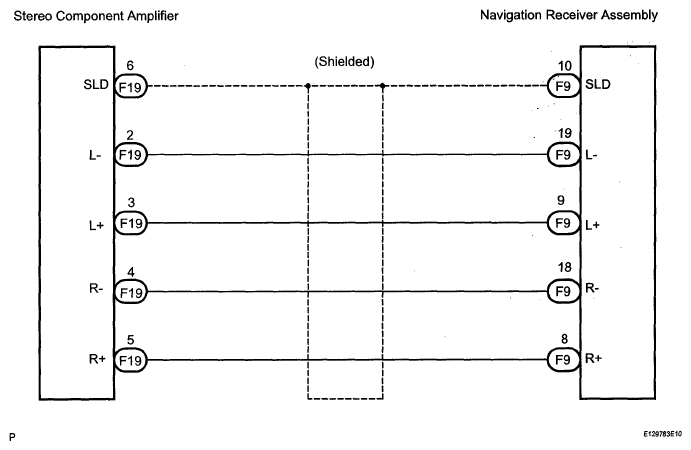

Fig 1: Navigation Receiver Assembly And Stereo Component Amplifier Sound Signal Wiring Diagram
G05561866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
