Vehicle Speed Signal Circuit between Navigation Receiver Assembly and Combination Meter: Wiring Diagram

  1. 2AZ-FE

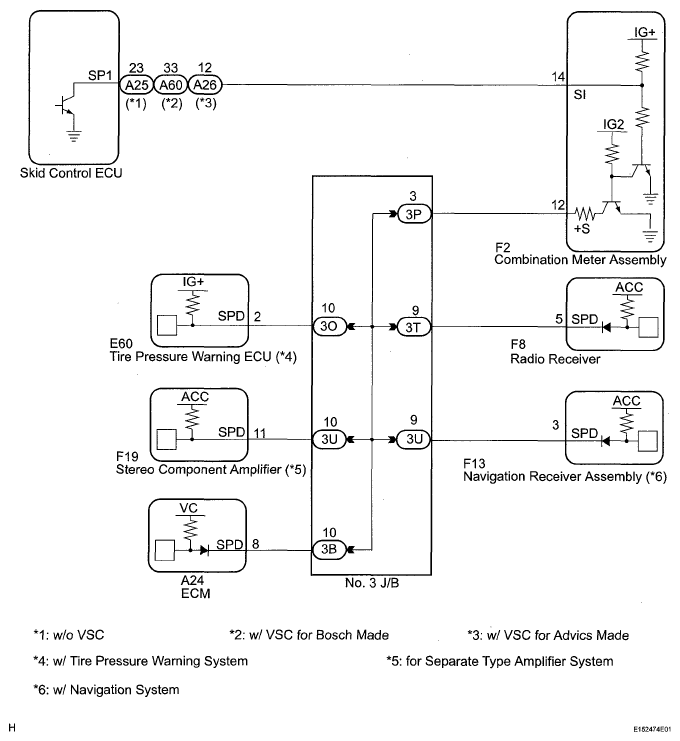

    Fig 1: Vehicle Speed Signal - Wiring Diagram (2AZ-FE)
    G05558371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. 2GR-FE

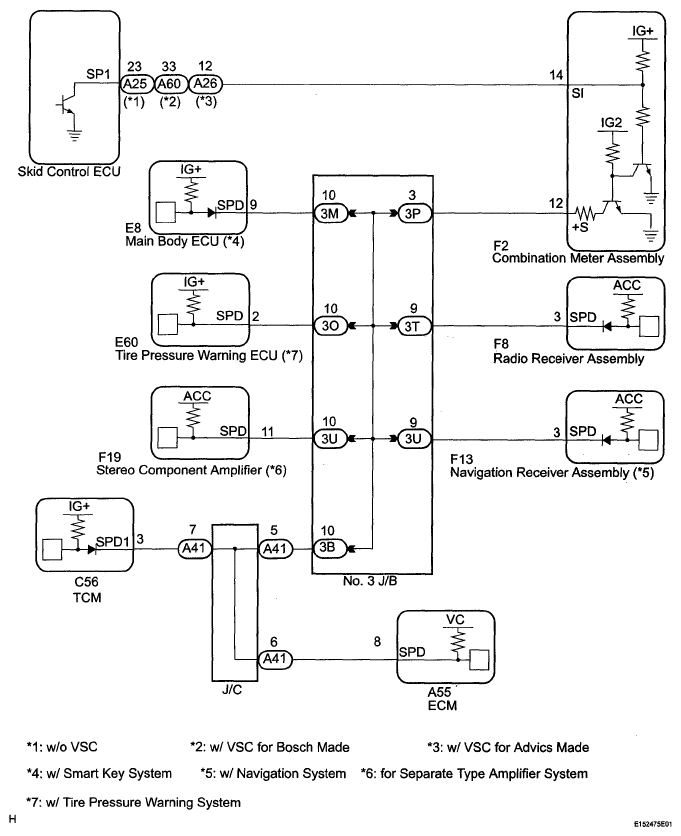

    Fig 2: Vehicle Speed Signal - Wiring Diagram (2GR-FE)
    G05561639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
