Starting System without Smart Key System: Notes

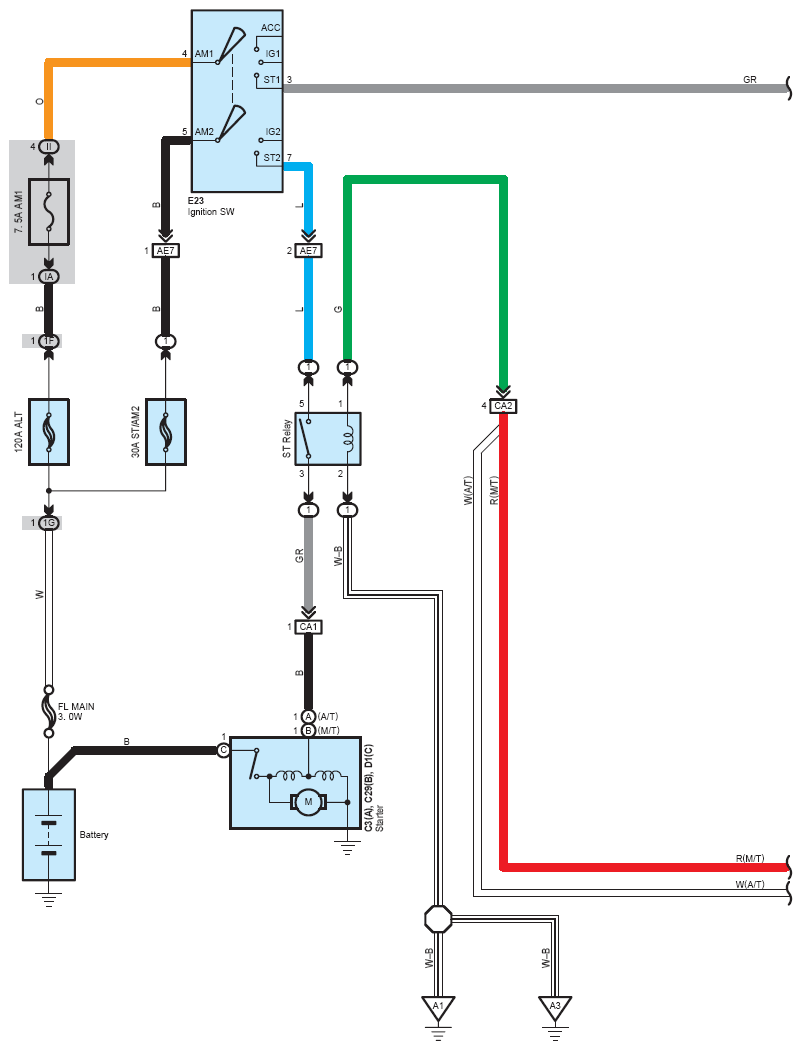

Fig 1: Starting Without Smart Key System - Circuit Diagram (1 Of 2)
G07603386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

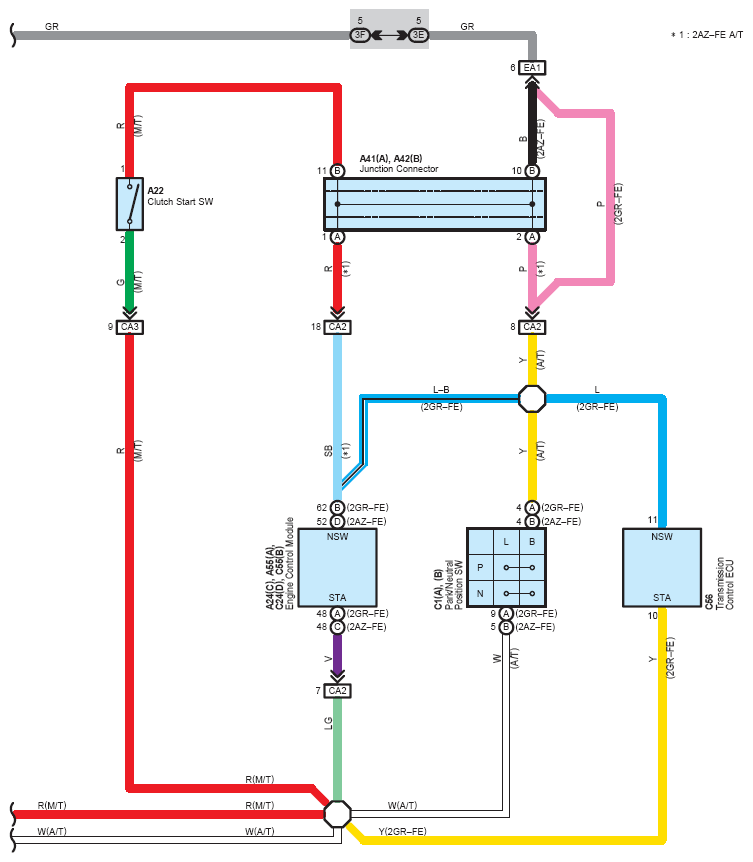

Fig 2: Starting Without Smart Key System - Circuit Diagram (2 Of 2)
G07603387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
