VC Output Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

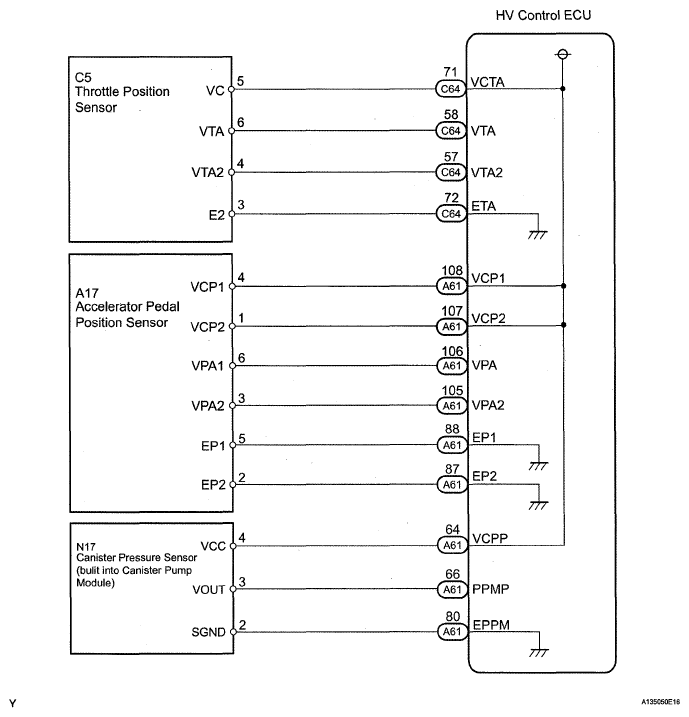

Fig 1: VC Output - Wiring Diagram
G05617779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
