Front Shock Absorber: Installation

1. Install the front shock absorber with coil spring to the front axle assembly and insert the 2 bolts from the front side of the vehicle.
2. Slowly jack up the vehicle using a wooden block and install the front shock absorber with coil spring (upper side) to the vehicle.

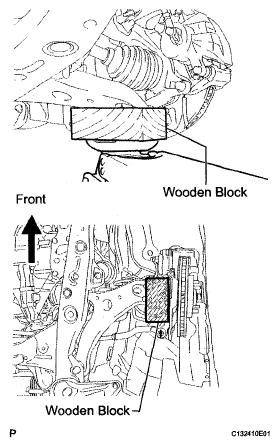

   Fig 1: Identifying Front No. 1 Suspension Lower Arm With Jack

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 3 nuts to the upper side of the front shock absorber with coil spring.

   Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)

   Fig 2: Locating Front Shock Absorber Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 2 nuts to the lower side of the front shock absorber with coil spring.

   Torque: 210 N*m (2,140 kgf*cm, 155 ft.*lbf)

   NOTE: When installing the nuts, keep the bolts from rotating.
   Fig 3: Locating Front Shock Absorber Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the front flexible hose and front speed sensor wire harness with the bolt.

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

   NOTE: Do not twist the front speed sensor wire harness when installing it.
   Fig 4: Locating Front Flexible Hose Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Fully tighten the lock nut.
   Fig 5: Locating Front Shock Absorber Lock Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

1. Install the front stabilizer link assembly with the nut.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.

   Fig 6: Locating Front Stabilizer Link Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

(See ADJUSTMENT )
