Floor Shift Lever Assembly: Components

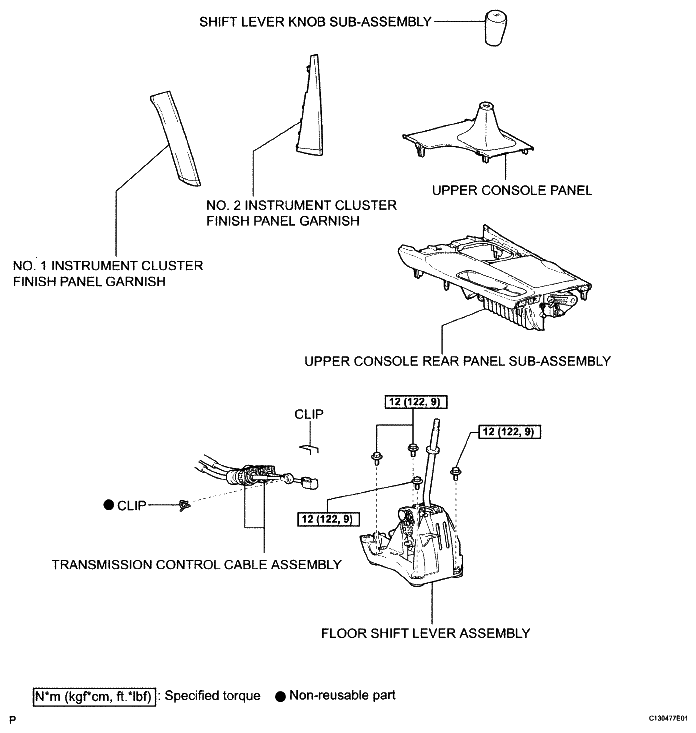

Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications
G04977176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
