Manual Transaxle Unit: Components

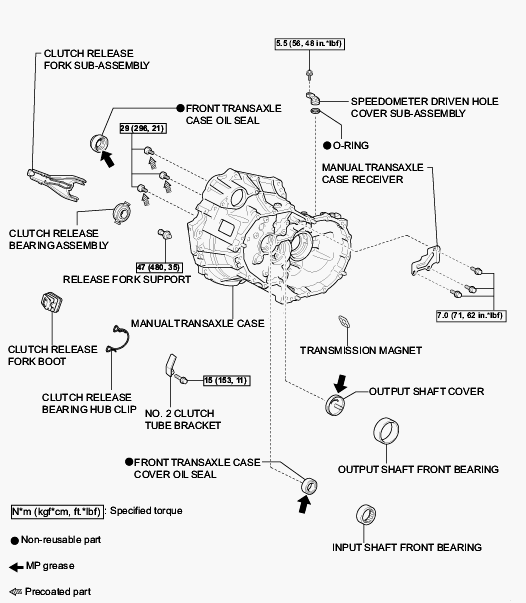

Fig 1: Manual Transaxle Unit Components With Torque Specifications (1 Of 7)
G00411959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CAUTION:

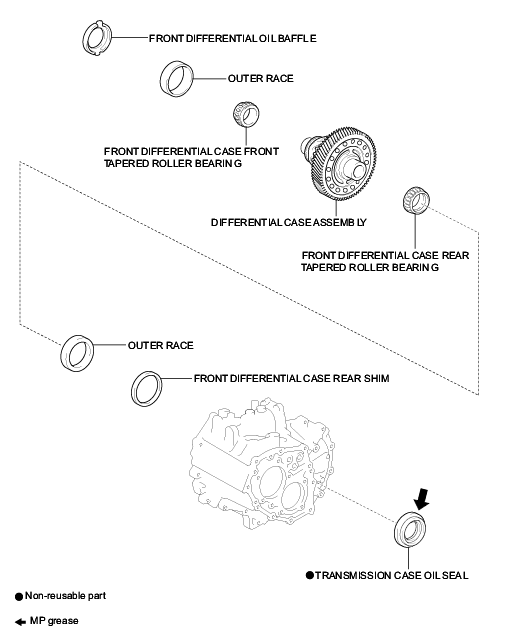

Fig 2: Manual Transaxle Unit Components With Torque Specifications (2 Of 7)
G00411960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

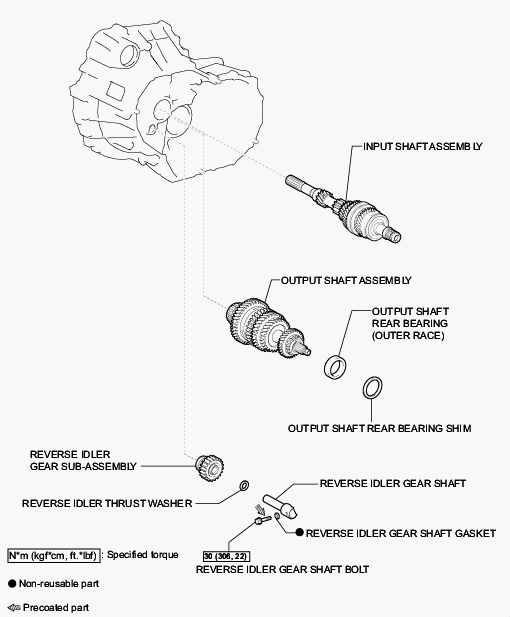

Fig 3: Manual Transaxle Unit Components With Torque Specification (6 Of 7)
G00411962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

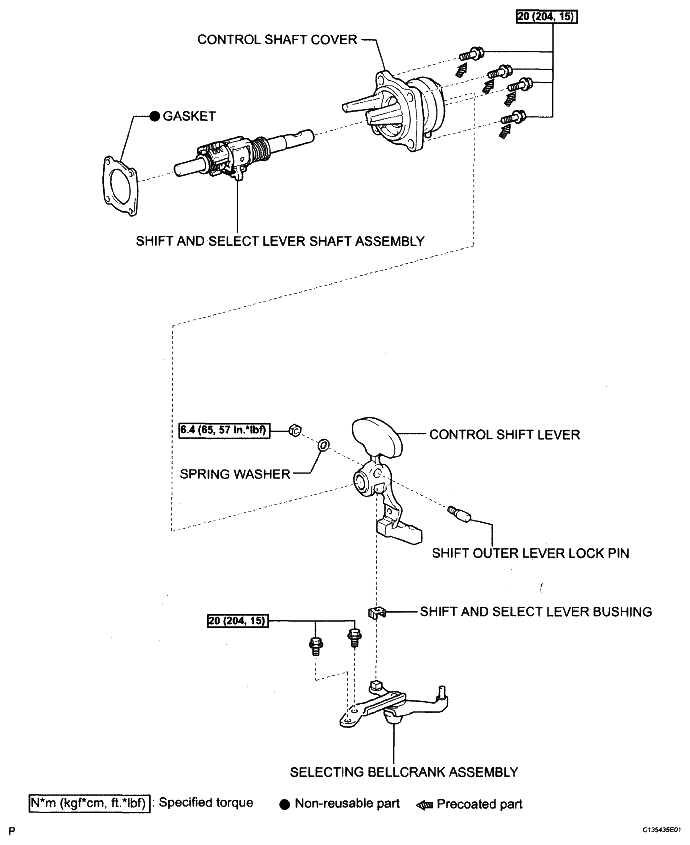

Fig 4: Manual Transaxle Unit Components With Torque Specifications (4 Of 7)
G04977216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

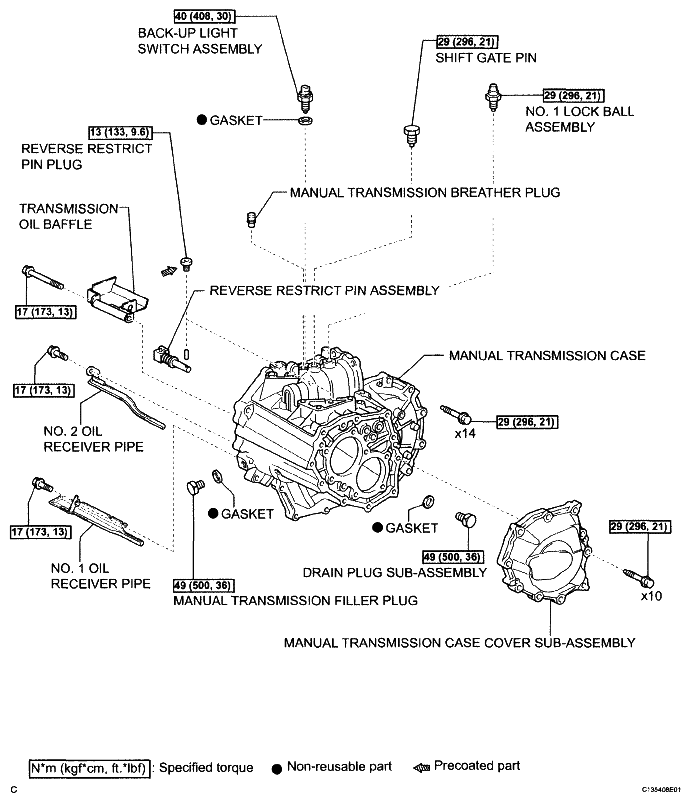

Fig 5: Manual Transaxle Unit Components With Torque Specifications (5 Of 7)
G04977217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Manual Transaxle Unit Components With Torque Specification (6 Of 7)
G00411962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

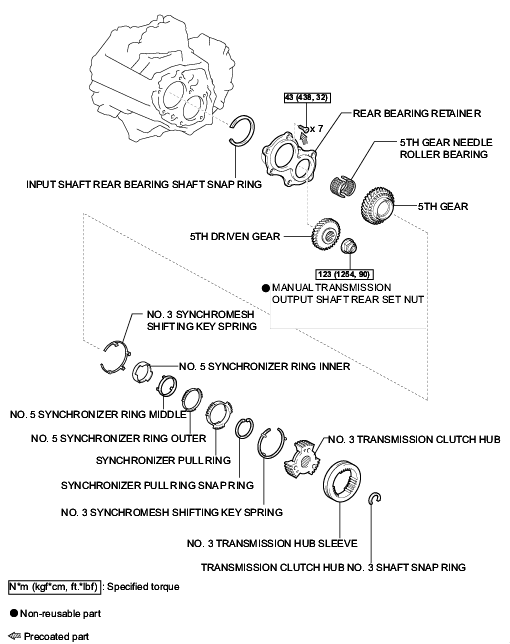

Fig 7: Manual Transaxle Unit Components With Torque Specifications (7 Of 7)
G00411963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
