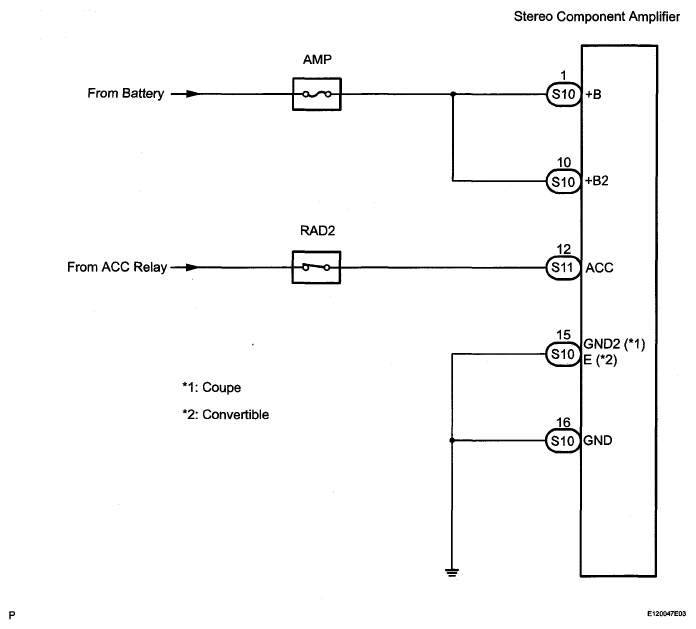

Stereo Component Amplifier Power Source Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
