Steering Column Assembly: Removal

  1. PRECAUTION
  2. DISCONNECT BATTERY NEGATIVE TERMINAL
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE STEERING PAD
    1. Using a "torx" socket wrench, loosen the 2 "torx" screws until the groove along the screw circumference catches on the screw case.
      Fig 1: Identifying Steering Pad Screws
      G05195163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the steering pad from the steering wheel.
    3. Using a screwdriver, release the lock part of each airbag connector and disconnect the 2 airbag connectors.
      NOTE:
      • If the airbag connector is disconnected with the ignition switch being at ON, DTCs will be recorded.
      • When removing the steering pad, take care not to pull the airbag wire harness.

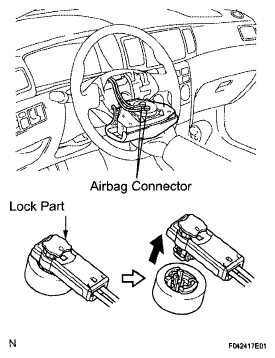

      Fig 2: Identifying Airbag Connectors
      G05195164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the steering pad.
    CAUTION:
    • When storing the steering pad, keep the upper surface of the pad facing upward.
    • Never disassemble the steering pad.
    Fig 3: Identifying Steering Pad
    G05195165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STEERING WHEEL ASSEMBLY
    1. Disconnect the connector.
    2. Remove the steering wheel assembly set nut.
    3. Place matchmarks on the steering wheel assembly and main shaft assembly.
    4. Using SST, remove the steering wheel assembly.

      SST 09950-50013 (09951 -05010, 09952-05010, 09953-05020, 09954-05021)

      Fig 4: Removing Steering Wheel Assembly
      G05195166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STEERING COLUMN COVER
    1. Remove the 3 screws, and then remove the column lower cover and column upper cover.
  7. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY (for Automatic Transaxle)
    1. With the key in ACC, push the claw and pull out the floor shift parking lock cable.
      Fig 5: Pushing Claw And Pulling Out Floor Shift Parking Lock Cable
      G05195167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SPIRAL CABLE
  9. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
    1. Disconnect the connector and remove the headlight dimmer switch assembly.
  10. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Disconnect the connector and remove the windshield wiper switch assembly.
  11. REMOVE COLUMN HOLE COVER SILENCER SHEET
  12. DISCONNECT STEERING INTERMEDIATE SHAFT
    1. Place matchmarks on the sliding yoke and steering intermediate shaft.
    2. Loosen the bolt A and remove the bolt B, then disconnect the steering intermediate shaft.
    Fig 6: Aligning Matchmarks On Sliding Yoke And Steering Intermediate Shaft
    G05195168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE STEERING COLUMN ASSEMBLY
    1. Disconnect the connectors and wire harness clamps from the steering column assembly.
    2. Remove the 3 bolts and steering column assembly.
    Fig 7: Locating Steering Column Assembly With Bolts
    G05195169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
