Rear Wiper and Washer System: Notes

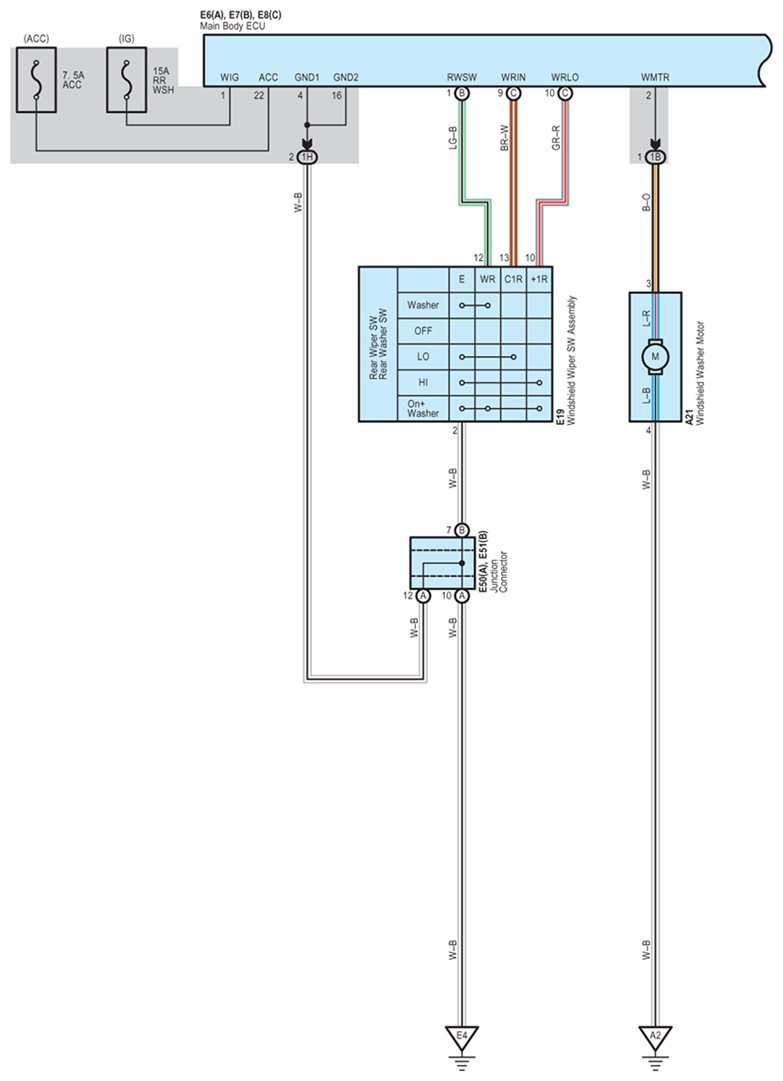

Fig 1: Rear Wiper And Washer - Circuit Diagram (1 Of 3)
G07595108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

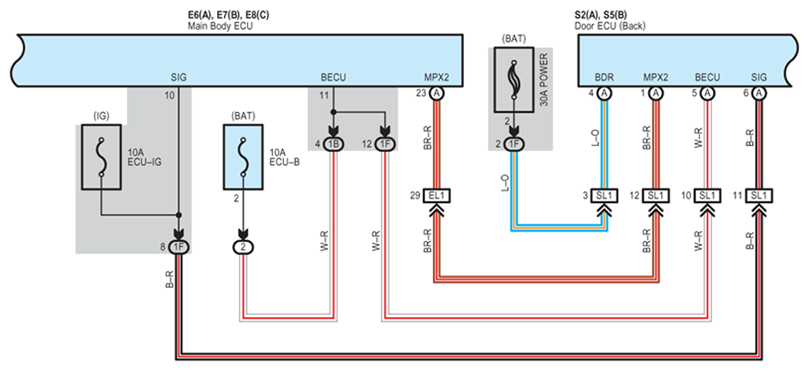

Fig 2: Rear Wiper And Washer - Circuit Diagram (2 Of 3)
G07595109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

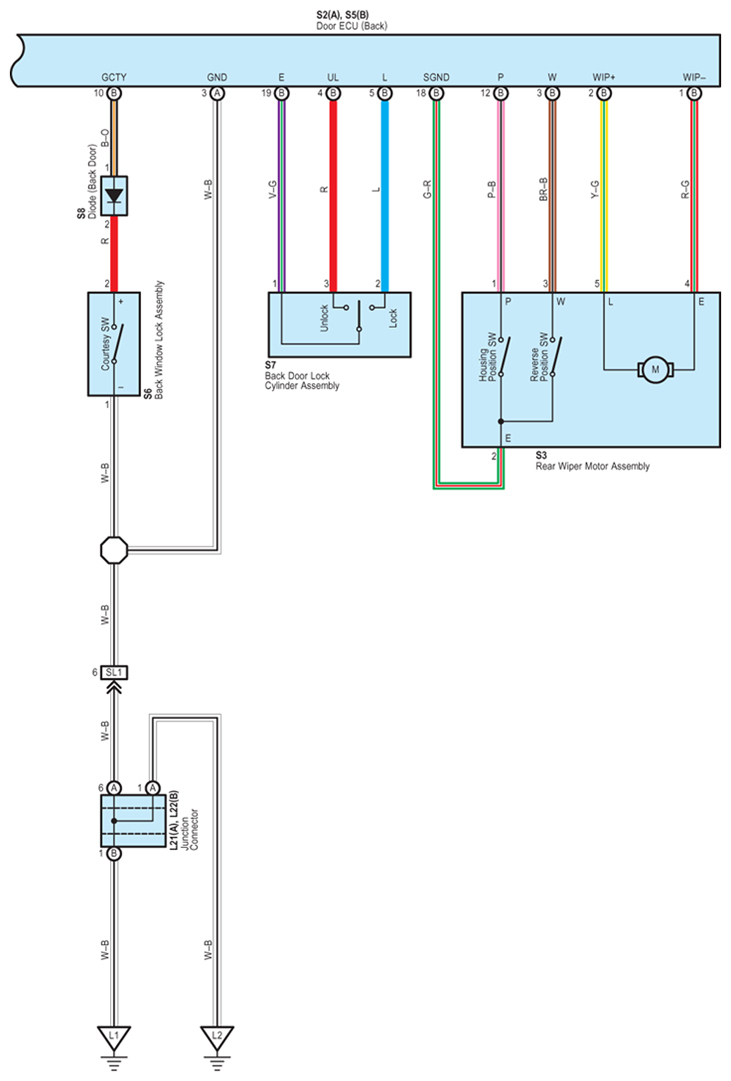

Fig 3: Rear Wiper And Washer - Circuit Diagram (3 Of 3)
G07595110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
