Sound Signal Circuit Between Navigation Receiver Assembly and Television Display Assembly: Wiring Diagram

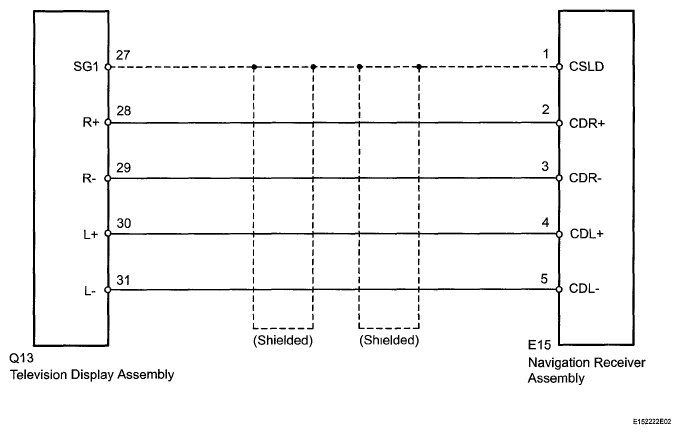

Fig 1: Identifying Television Display Assembly & Navigation Receiver Assembly Wiring Diagram
G05420885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
