Inspection Procedure

1. Check for DTCs.
2. Connect Techstream to the DLC3.
3. By following the tester screen display, check whether any DTCs are output.

   Result

   RESULT REFERENCE



   Result	Proceed to
   No output	A
   DTC output	B

B: PROCEED TO INSPECTION PROCEDURE RELEVANT TO OUTPUT DTC

A: Go to next step.

1. Use the Data List to check the function of the power window master switch.

   D-Door Motor

   DATA LIST - D-DOOR MOTOR



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   D P/W Auto Switch	Driver side power window AUTO switch signal / ON or OFF	ON: Driver side power window AUTO switch operates OFF: Driver side power window AUTO switch does not operate	-
   D P/W Up Switch	Driver side power window UP switch signal / ON or OFF	ON: Driver side power window UP switch operates OFF: Driver side power window UP switch does not operate	-
   D P/W Down Switch	Driver side power window DOWN switch signal / ON or OFF	ON: Driver side power window DOWN switch operates OFF: Driver side power window DOWN switch does not operate	-

   OK: ON (switch operates) appears on screen.

NG: Go to step   3

OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side)  (See REMOVAL  )

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION TABLE



   Tester Connection	Condition	Specified Condition
   8 (U) - 1 (E) - 4 (A)	Auto UP	Below 1 Ω
   4 (A) - 5 (D) - 1 (E)	Auto Down	Below 1 Ω

   Fig 1: Identifying Power Window Master Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW MASTER SWITCH  (See REMOVAL  )

OK: Go to next step.

1. Remove the DOOR NO. 2 fuse from the instrument panel junction block.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION TABLE



   Tester Connection	Condition	Specified Condition
   DOOR NO. 2	Always	Below 1 Ω

NG: REPLACE FUSE (DOOR NO. 2)

OK: Go to next step.

1. Disconnect the M1 and H1 connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION TABLE



   Tester Connection	Condition	Specified Condition
   M1-4 (A) - H1-4 (AUTO)	Always	Below 1 Ω

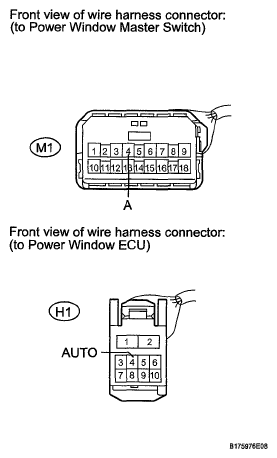

   Fig 2: Identifying Power Window Master Switch & Power Window ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side)  (See REMOVAL  )
