Starting System without Smart Key System: Notes

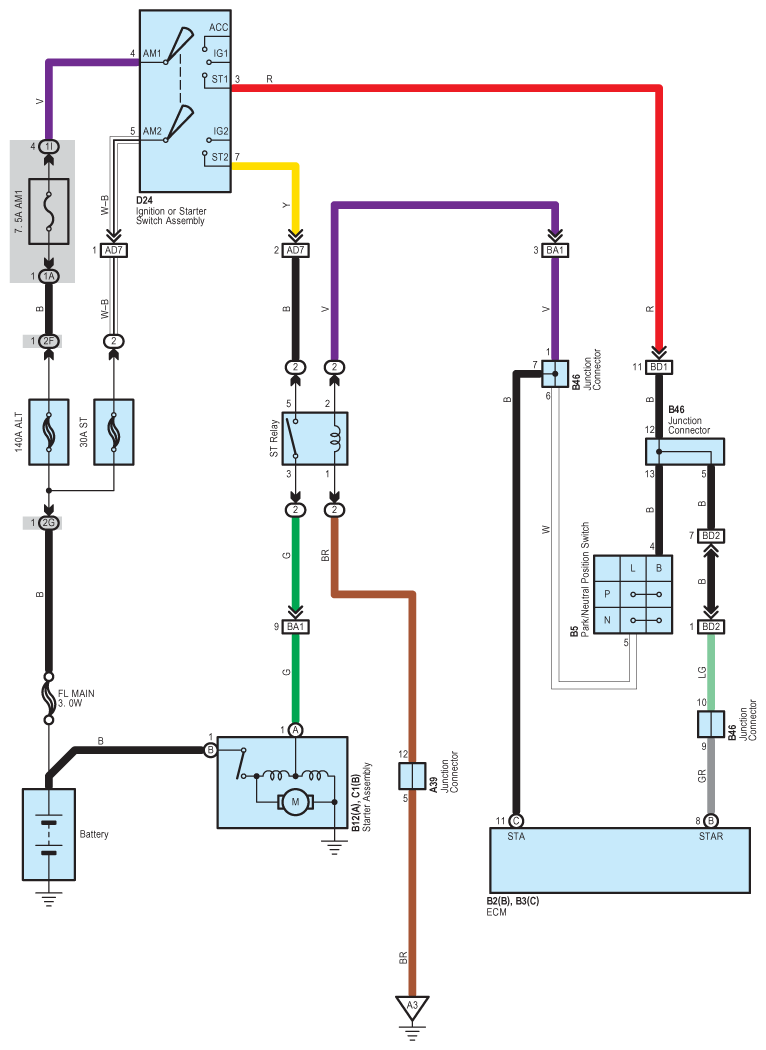

Fig 1: Starting Without Smart Key System - Circuit Diagram
G07576564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
