DTC P0110, P0112, P0113: Intake Air Temperature Circuit; Intake Air Temperature Circuit Low Input; Intake Air Temperature Circuit High Input: Wiring Diagram

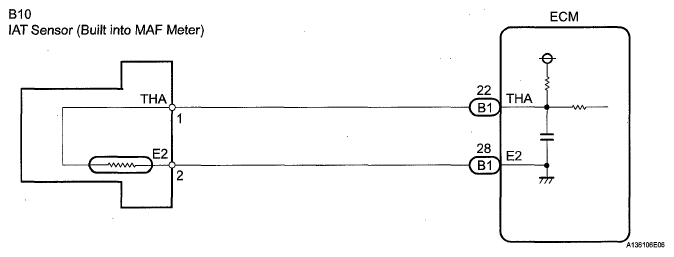

Fig 1: Identifying Intake Air Temperature Circuit Wiring Diagram
G05413643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
