DTC U0073, U0100, U0129: Control Module Communication Bus OFF; Lost Communication with ECM/PCM "A1"; Lost Communication with Brake System Control Module: Wiring Diagram

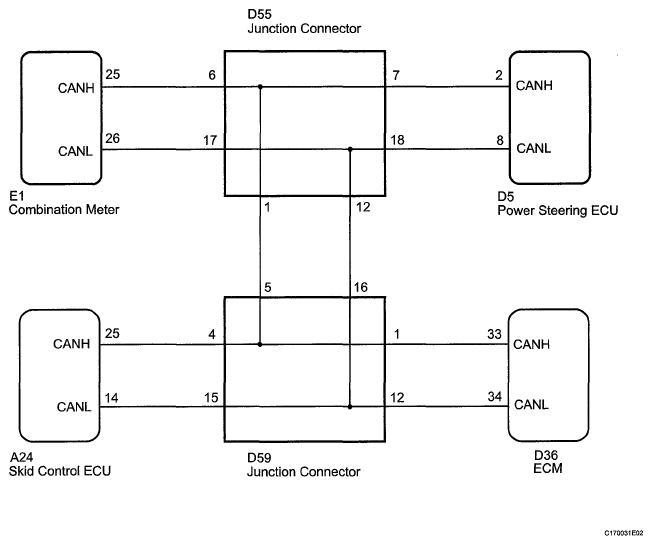

Fig 1: Identifying Skid Control ECU & Junction Connector Wiring Diagram
G05418272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
