Parts Location

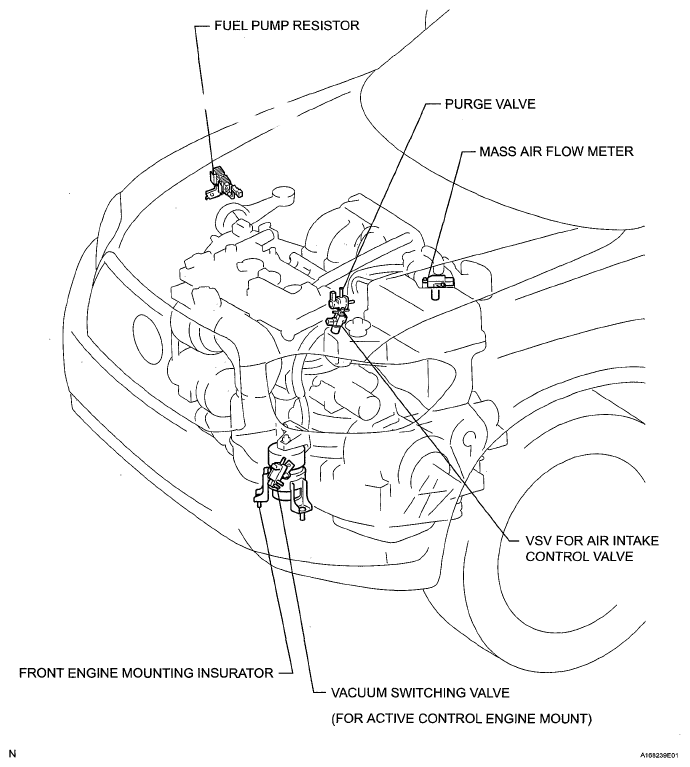

Fig 1: Identifying Engine Control System Replacement Components (1 Of 5)
G05413569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

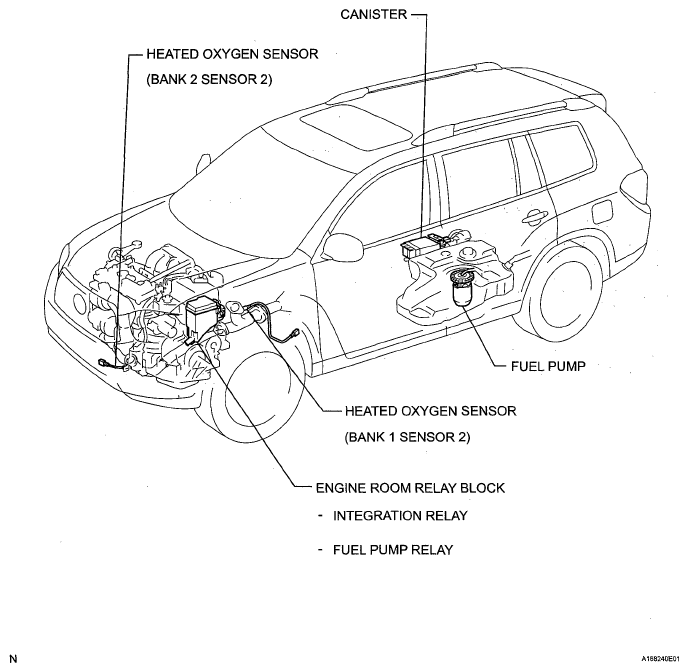

Fig 2: Identifying Engine Control System Replacement Components (2 Of 5)
G05413570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

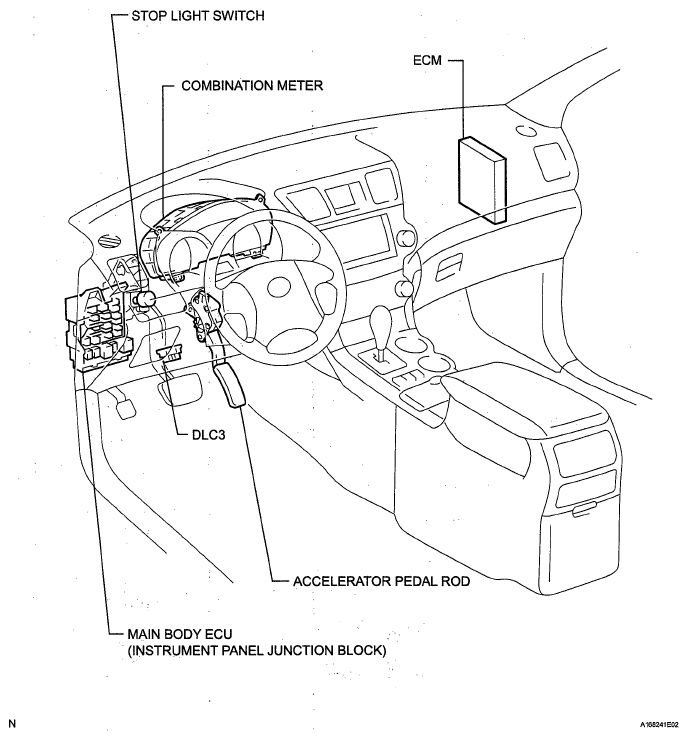

Fig 3: Identifying Engine Control System Replacement Components (3 Of 5)
G05413571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

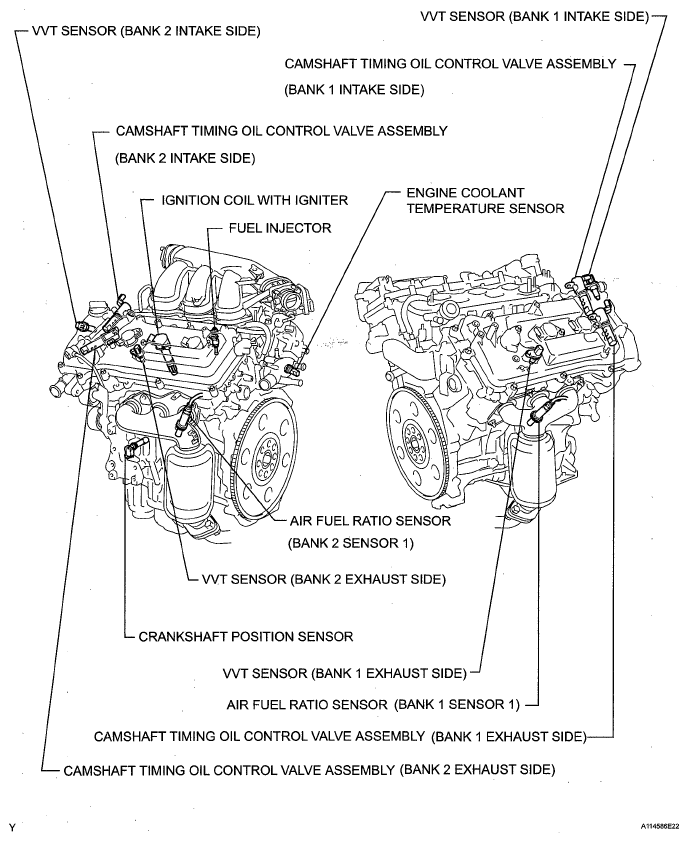

Fig 4: Identifying Engine Control System Replacement Components (4 Of 5)
G05413572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

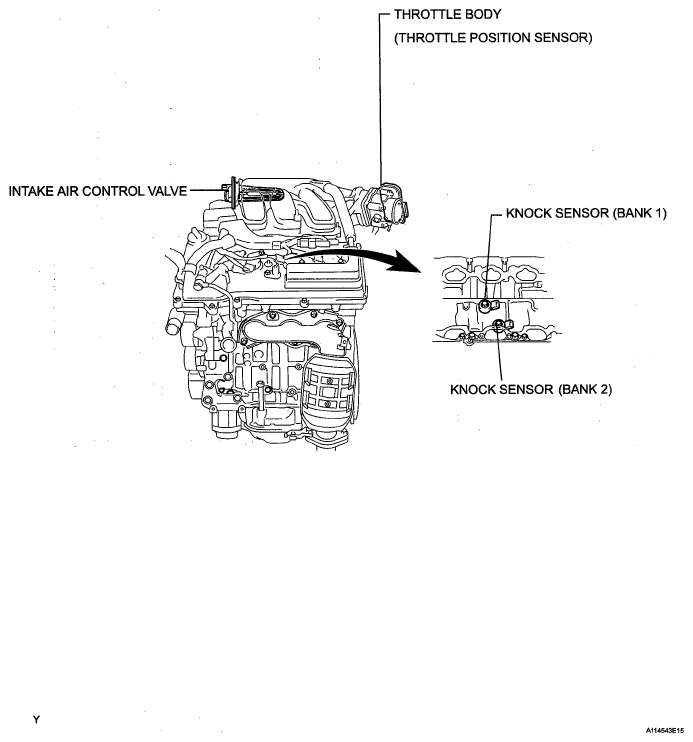

Fig 5: Identifying Engine Control System Replacement Components (5 Of 5)
G05413573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
