Knock Sensor: Components

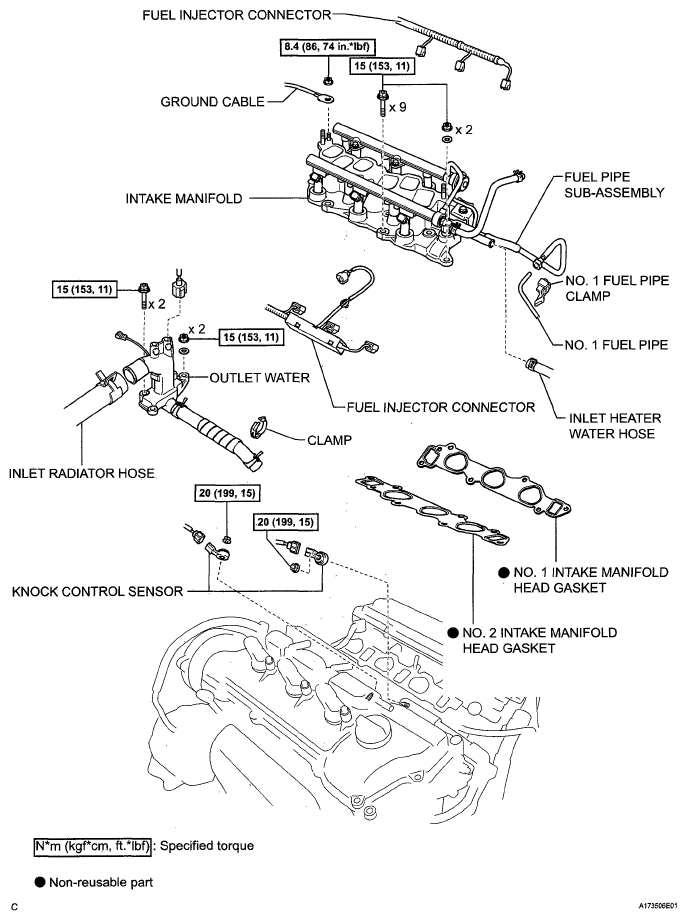

Fig 1: Throttle Body Replacement Components Replacement With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

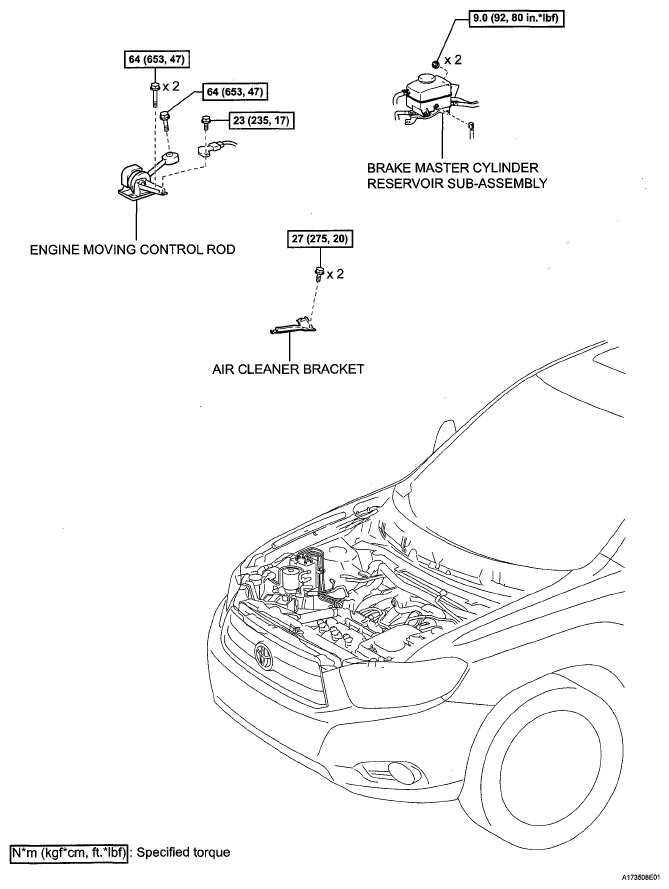

Fig 3: Identifying Knock Sensor Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

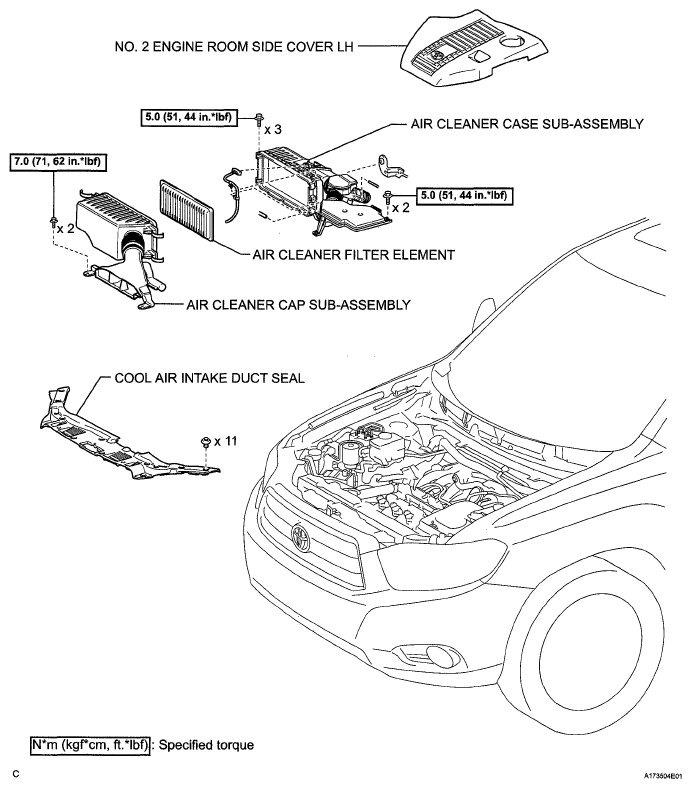

Fig 4: Identifying Knock Sensor Replacement Components With Torque Specifications (4 Of 5)

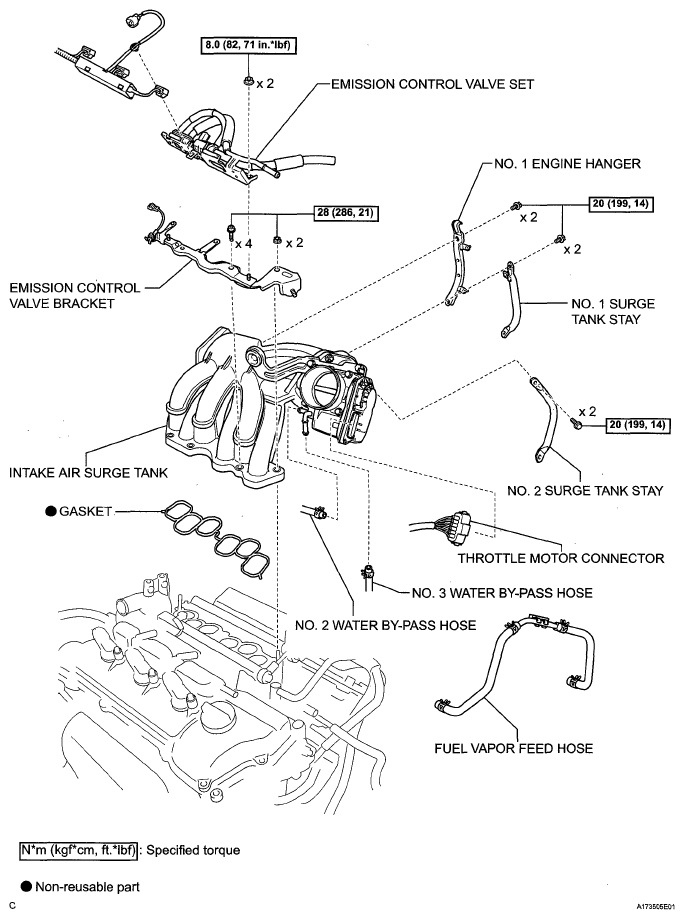

Fig 5: Lnock Sensor Replacement Components With Torque Specifications (5 Of 5)
