Cruise Control Main Switch: Inspection
- INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

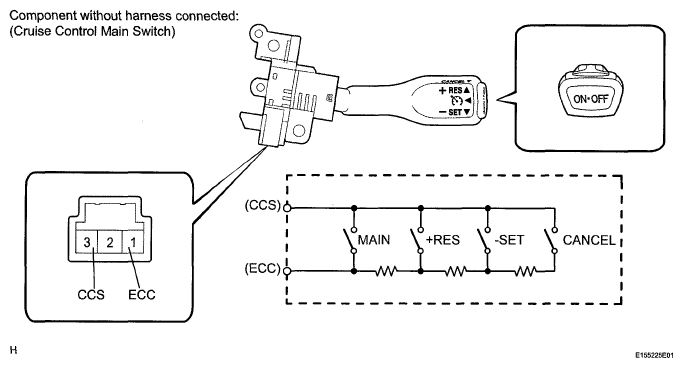

- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 1 (ECC) - 3 (CCS) Neutral 10 kΩ or higher 1 (ECC) - 3 (CCS) +RES 216 to 264 Ω 1 (ECC) - 3 (CCS) -SET 567 to 693 Ω 1 (ECC) - 3 (CCS) CANCEL 1386 to 1694 Ω 1 (ECC) - 3 (CCS) Main Switch OFF 10 kΩ or higher 1 (ECC) - 3 (CCS) Main Switch ON Below 1 Ω If the result is not as specified, replace the cruise control main switch assembly.
- Measure the resistance according to the value(s) in the table below.
