Crawl Indicator Light does not Come ON: Wiring Diagram

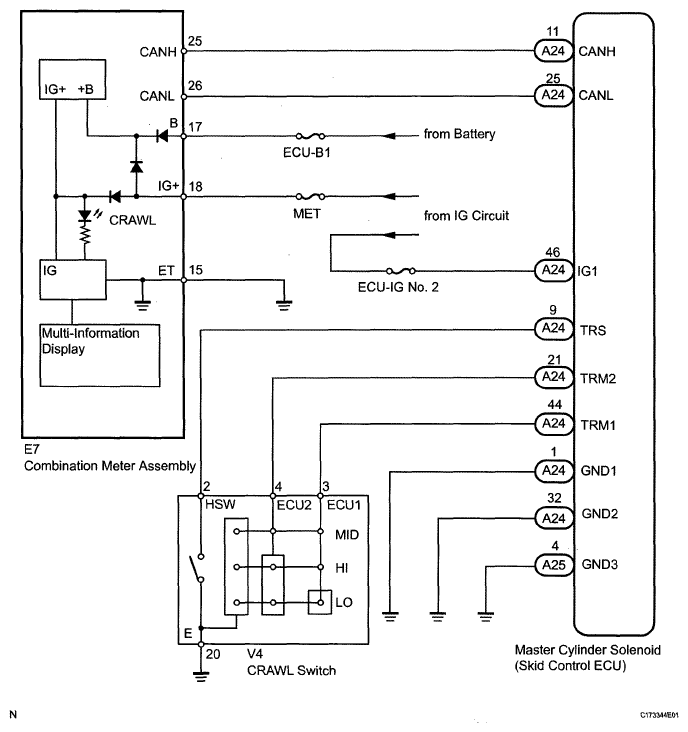

Fig 1: Crawl Indicator Light - Wiring Diagram
G05629920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
