Front Fog Light System: Notes

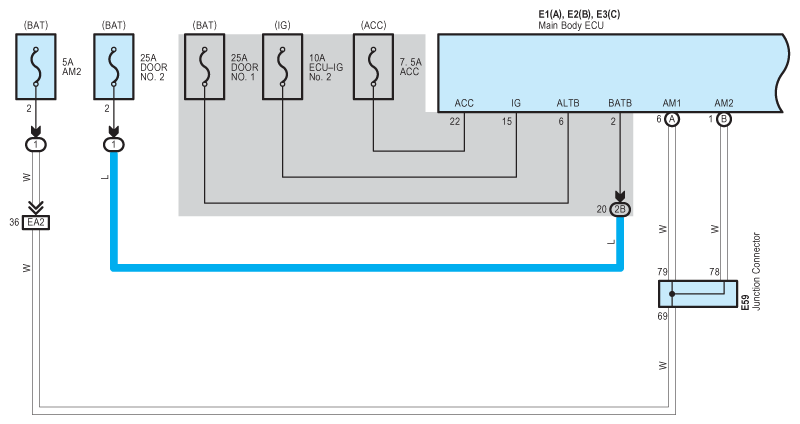

Fig 1: Front Fog Light - Circuit Diagram (1 Of 4)
G07600169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

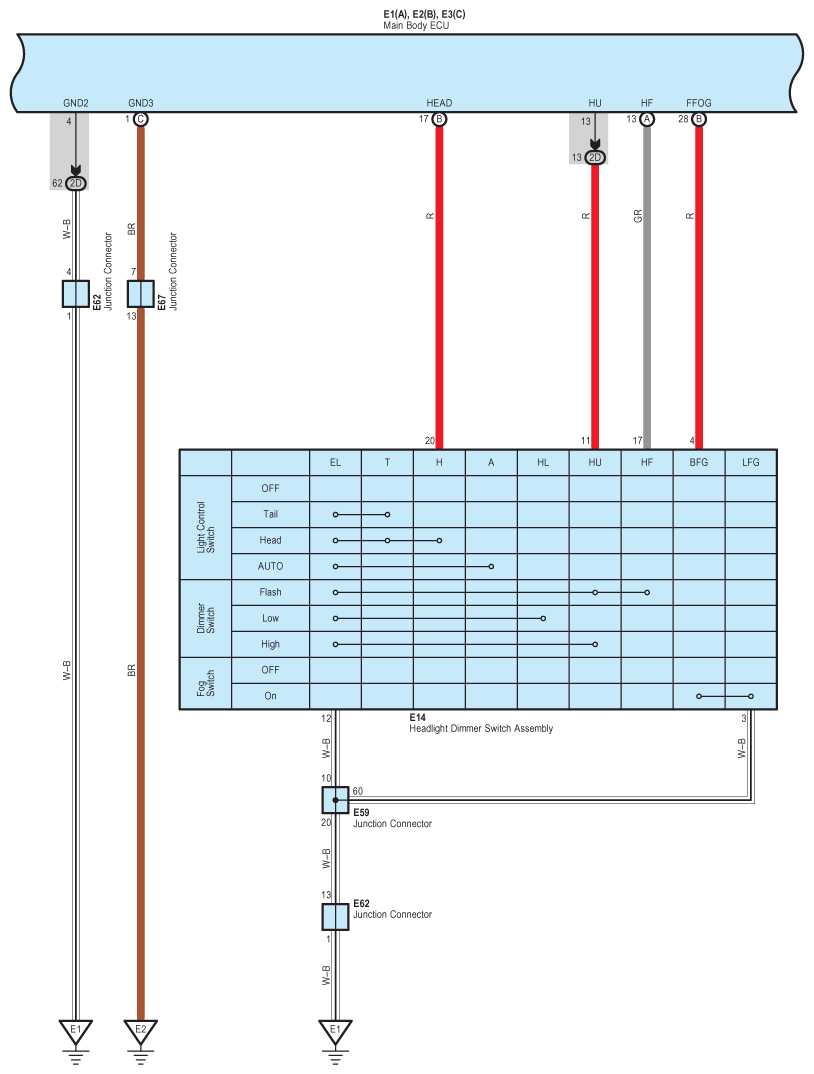

Fig 2: Front Fog Light - Circuit Diagram (2 Of 4)
G07600170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

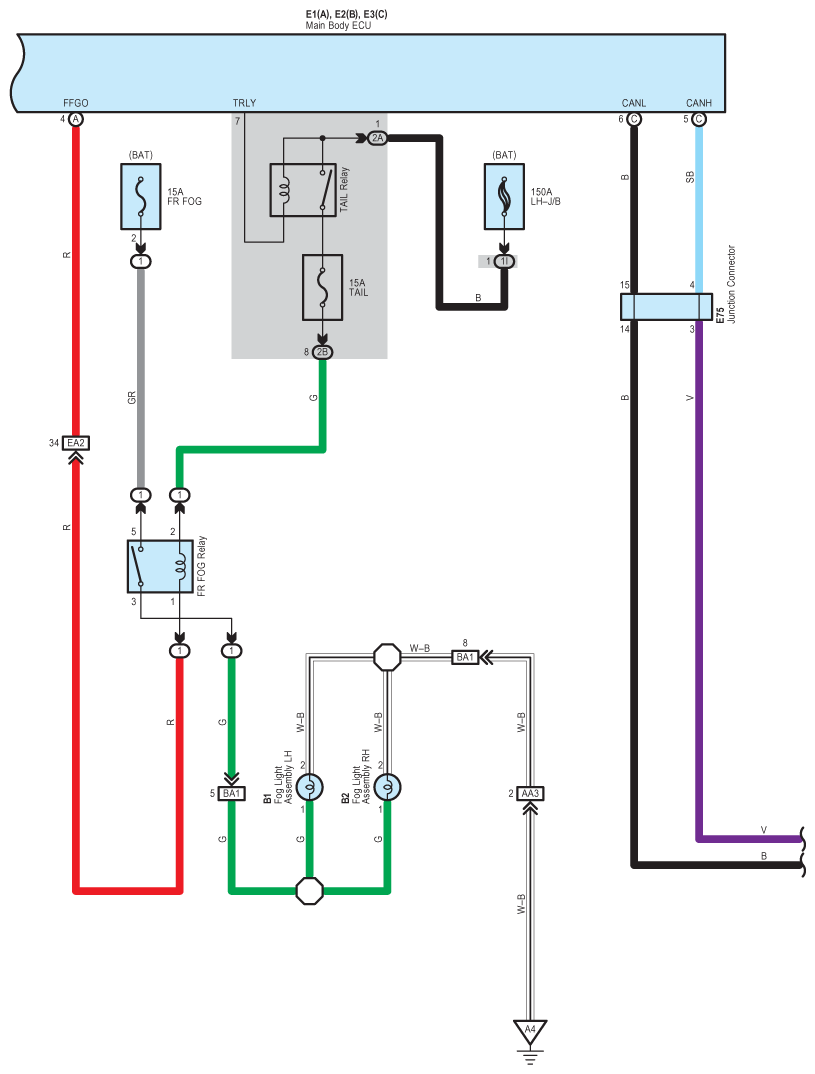

Fig 3: Front Fog Light - Circuit Diagram (3 Of 4)
G07600171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

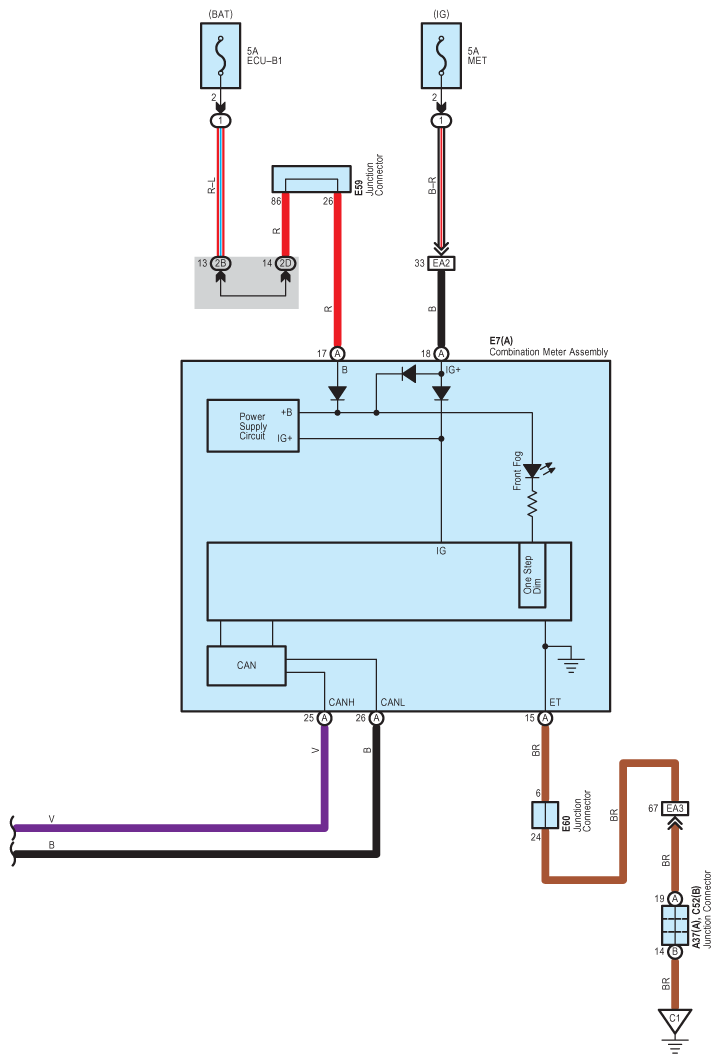

Fig 4: Front Fog Light - Circuit Diagram (4 Of 4)
G07600172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
