Interior Light System: Notes

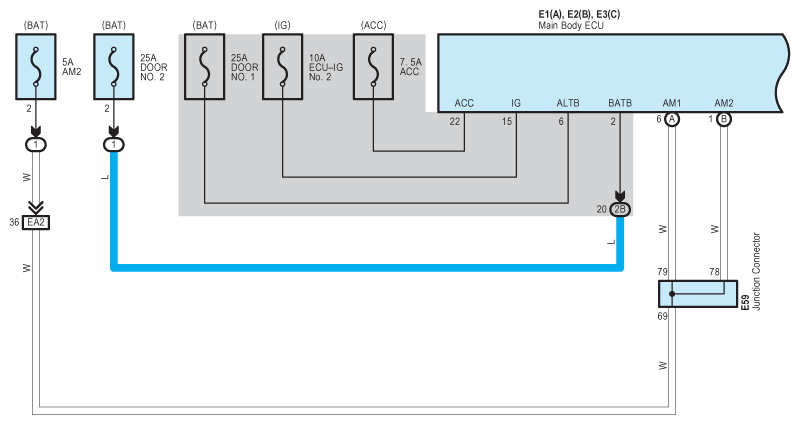

Fig 1: Interior Light - Circuit Diagram (1 Of 7)

G07600175

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

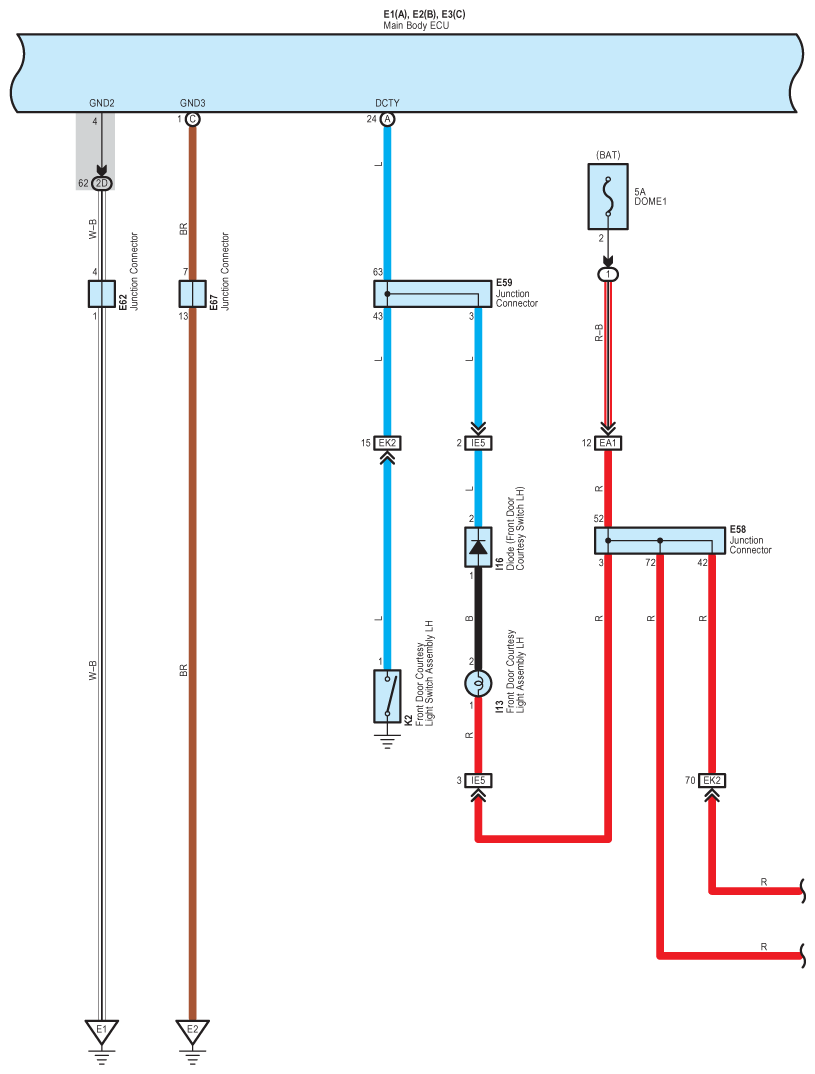

Fig 2: Interior Light - Circuit Diagram (2 Of 7)

G07600176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

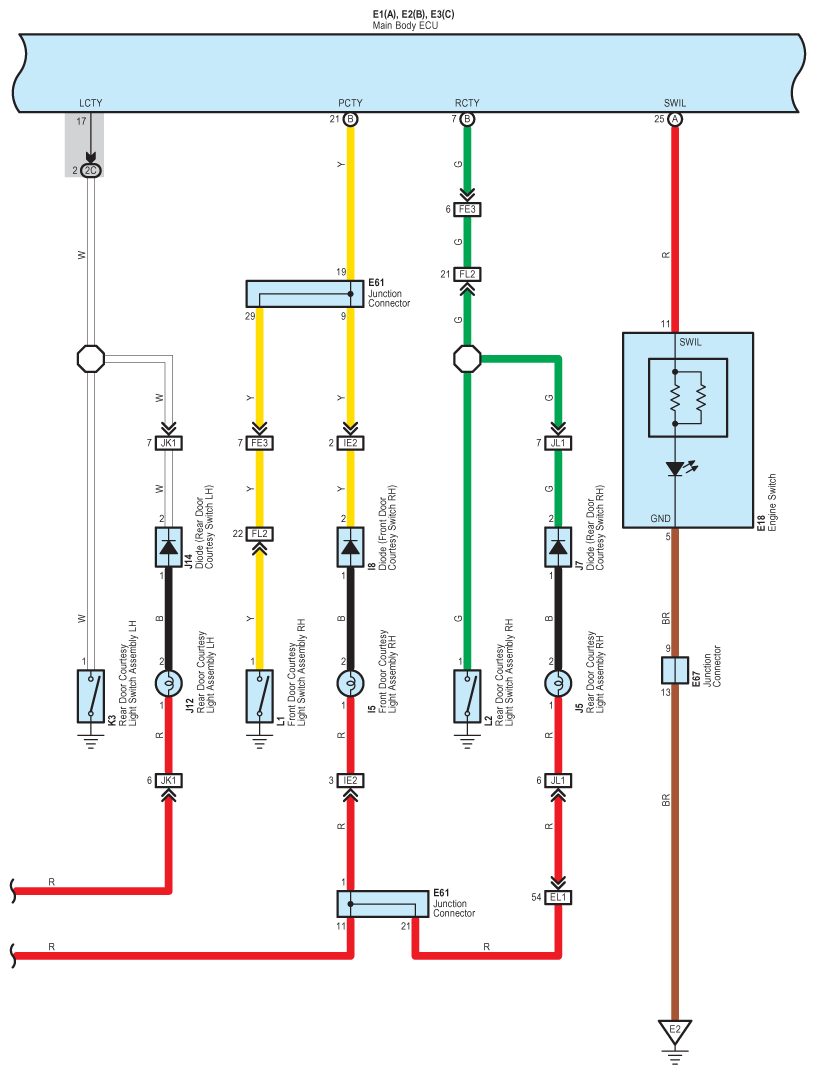

Fig 3: Interior Light - Circuit Diagram (3 Of 7)

G07600177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

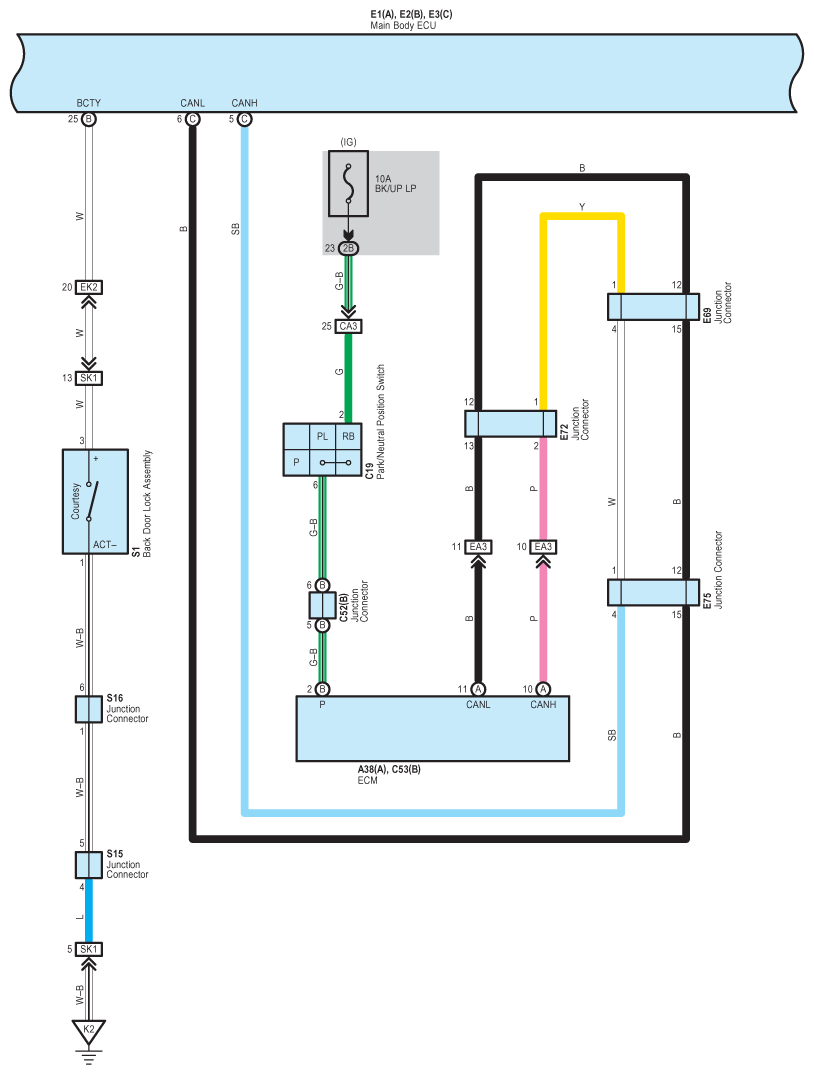

Fig 4: Interior Light - Circuit Diagram (4 Of 7)

G07600178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

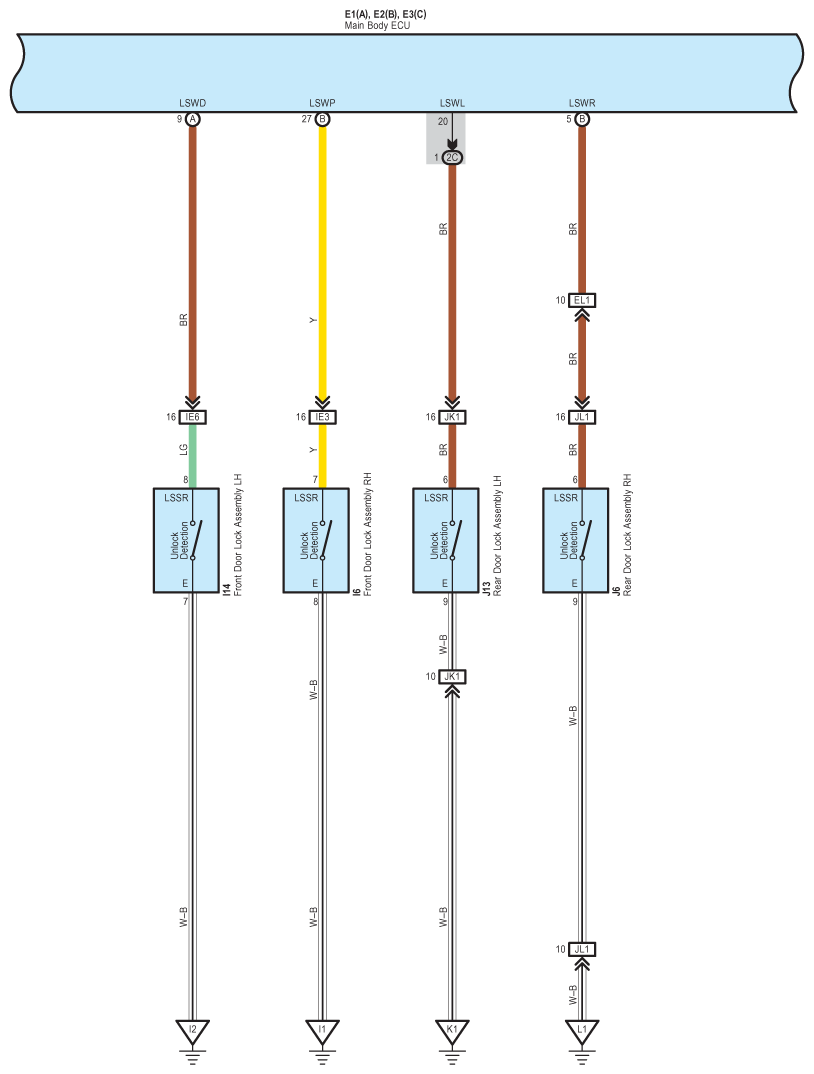

Fig 5: Interior Light - Circuit Diagram (5 Of 7)

G07600179

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

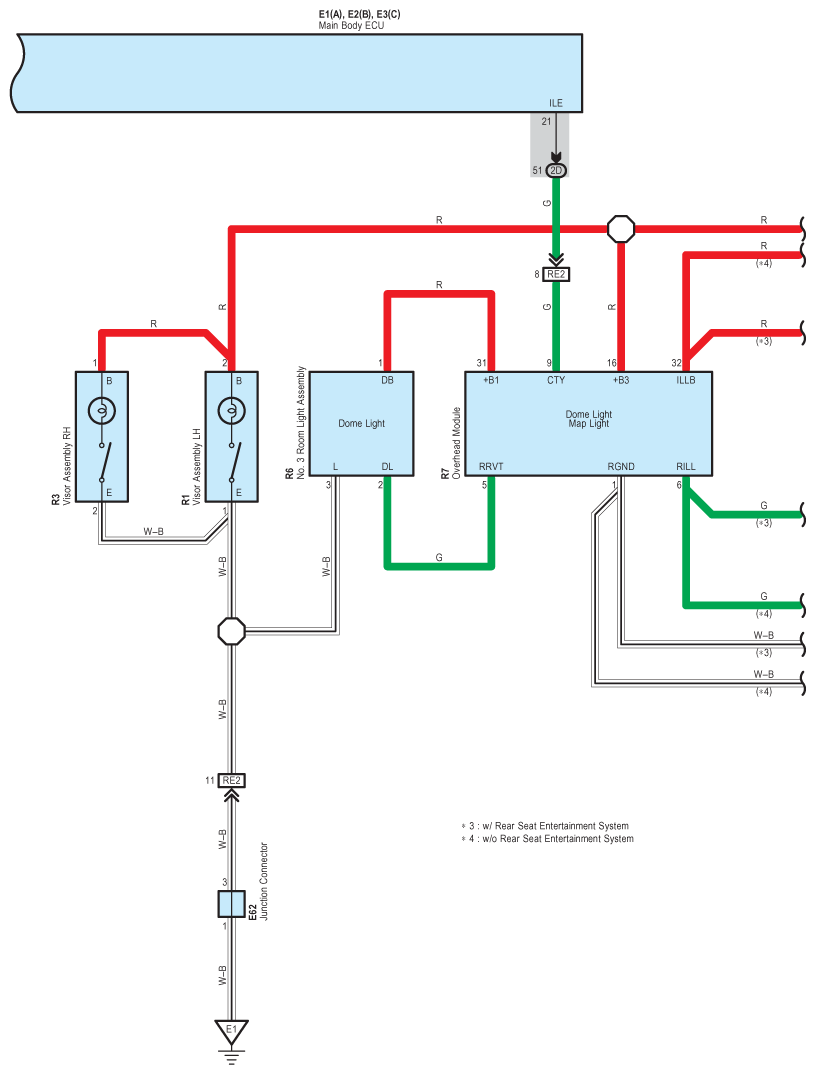

Fig 6: Interior Light - Circuit Diagram (6 Of 7)

G07600180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

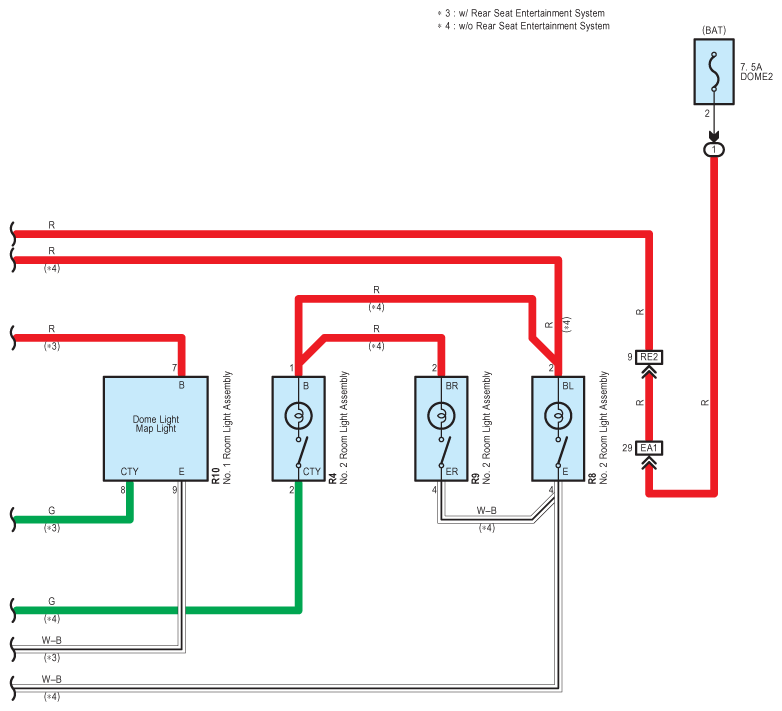

Fig 7: Interior Light - Circuit Diagram (7 Of 7)

G07600181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
