Engine Room Relay Block Assembly And Engine Room Junction Block Assembly

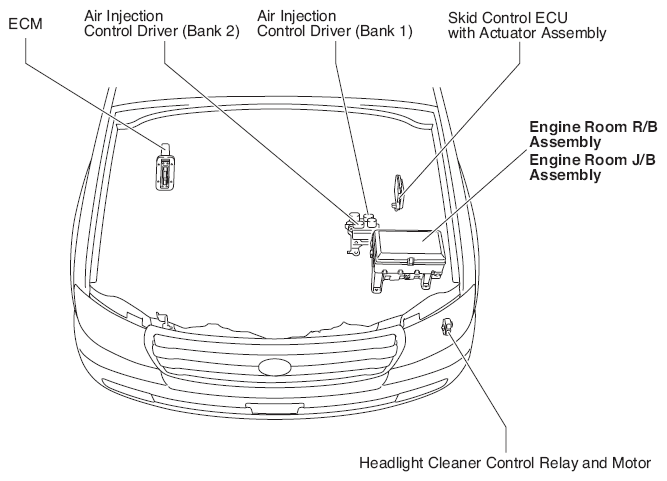

Engine Compartment Left  (See Figure)

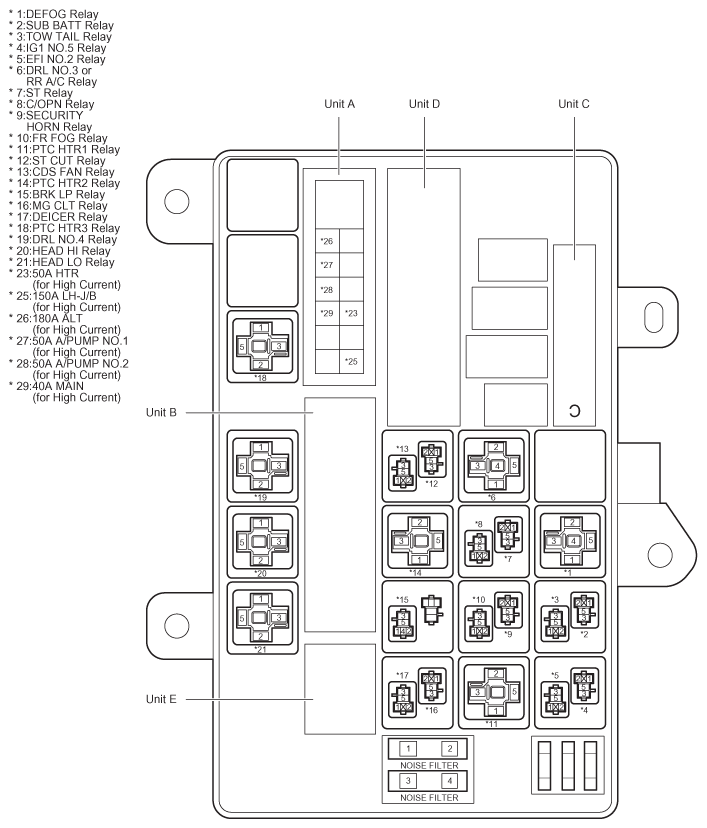

Fig 1: Engine Room R/B And J/B Assemblies Relay Locations
G07600062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
*1 Defog Relay
*2 SUB BATT Relay
*3 TOW Tail Relay
*4 IG1 No.5 Relay
*5 EFI No.2 Relay
*6 DLR No.3 or RR A/C Relay
*7 ST Relay
*8 C/OPN Relay
*9 Security Horn Relay
*10 FR Fog Relay
*11 PTC HTR1 Relay
*12 ST CUT Relay
*13 CDS Fan Relay
*14 PTC HTR2 Relay
*15 BRK LP Relay
*16 MIG CLT Relay
*17 Deicer Relay
*18 PTC HTR3 Relay
*19 DRL No.4 Relay
*20 Head HI Relay
*21 Head LO Relay

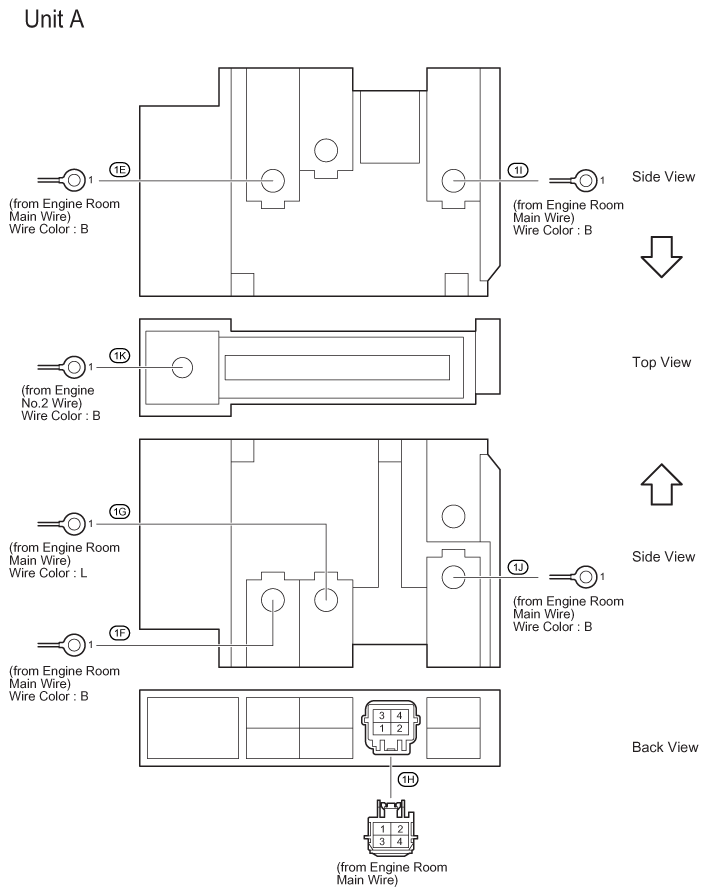

Fig 2: Engine Room R/B And J/B Assemblies Connector Locations (View A)
G07600063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

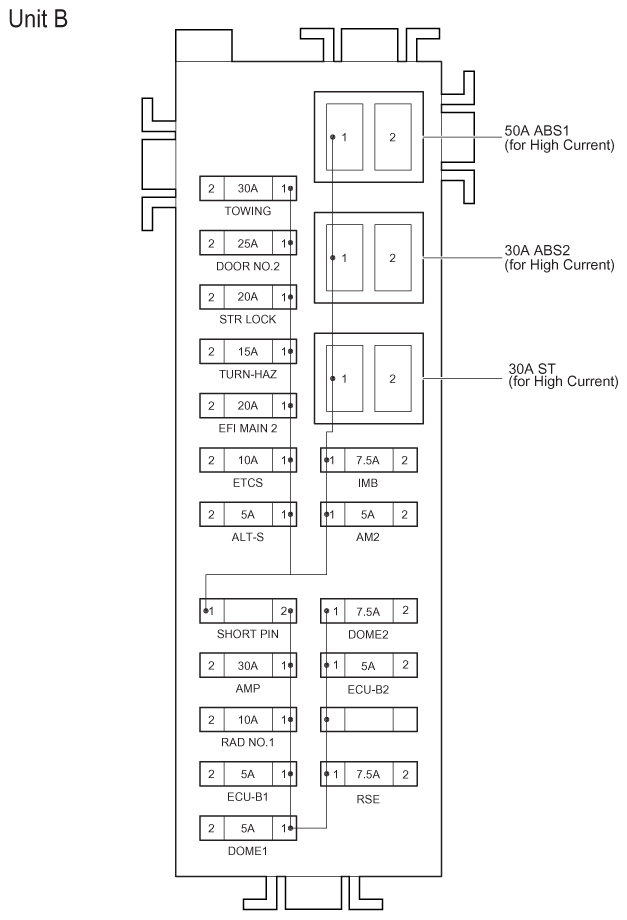

Fig 3: Engine Room R/B And J/B Assemblies Connector And Fuse Locations (View B)
G07600064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B AND J/B ASSEMBLIES (VIEW B) FUSE LEGEND

Fuse description
Refer to Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Fuse Identification Legend

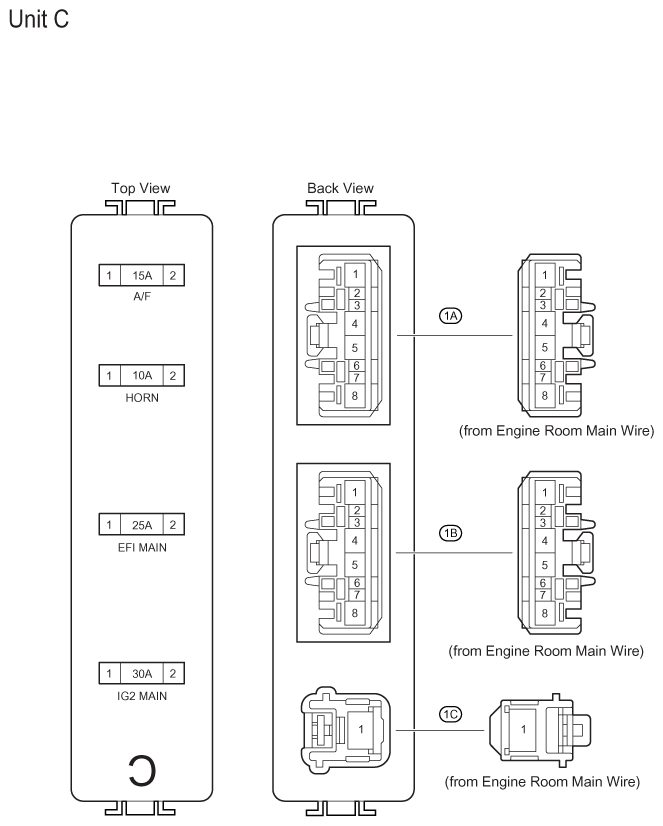

Fig 4: Engine Room R/B And J/B Assemblies Connector And Fuse Locations (View C)
G07600065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B AND J/B ASSEMBLIES (VIEW B) FUSE LEGEND

Fuse description
Refer to Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Fuse Identification Legend

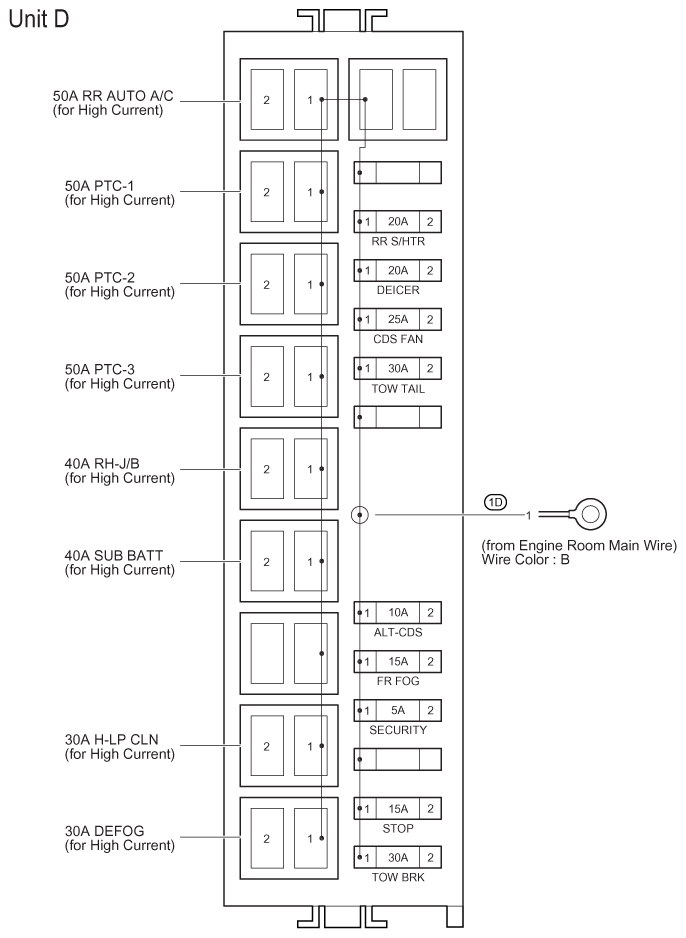

Fig 5: Engine Room R/B And J/B Assemblies Connector And Fuse Locations (View D)
G07600066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B AND J/B ASSEMBLIES (VIEW B) FUSE LEGEND

Fuse description
Refer to Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Fuse Identification Legend

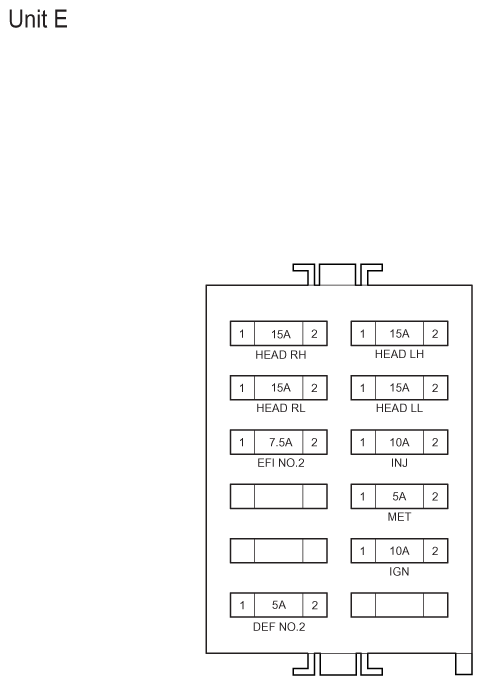

Fig 6: Engine Room R/B And J/B Assemblies Connector And Fuse Locations (View E)
G07600067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B AND J/B ASSEMBLIES (VIEW B) FUSE LEGEND

Fuse description
Refer to Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Fuse Identification Legend
