Purge Valve: Components

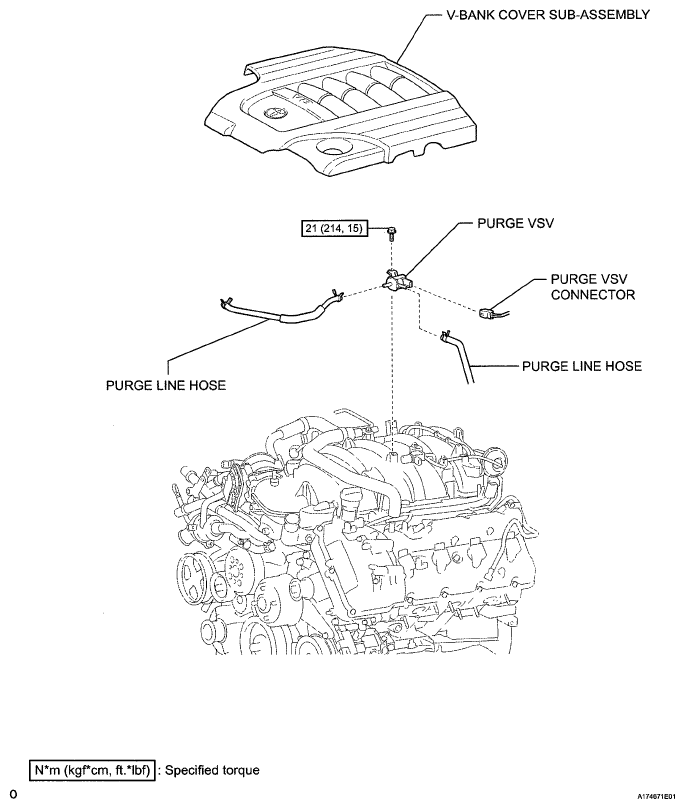

Fig 1: Purge Valve Replacement Components With Torque Specifications
G05637977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
