ABS Relay Block

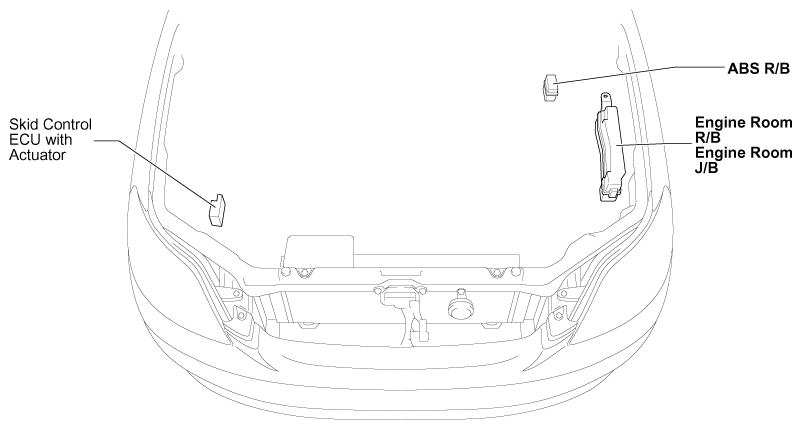

Near the Front Left Suspension Tower  (See Figure)

Fig 1: ABS R/B Relay Locations
G07599123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

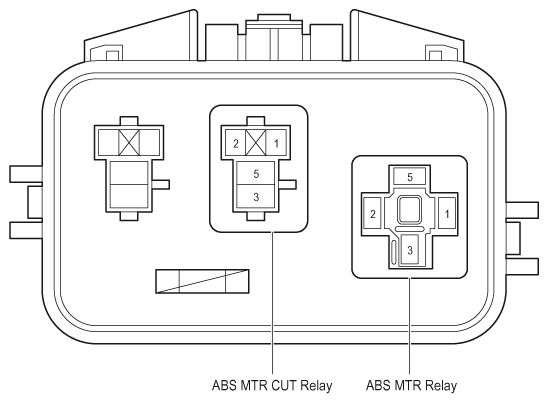

ABS R/B RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR CUT Relay
ABS MTR Relay
