DTC P0031 Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 1); DTC P0032 Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 1): Description

HINT:

Although the DTC titles say the oxygen sensor, these DTCs relate to the Air-Fuel Ratio (A/F) sensor.
Sensor 1 refers to the sensor mounted in front of the Three-Way Catalytic Converter (TWC) and located near the engine assembly.
When any of these DTCs are set, the ECM enters fail-safe mode. The ECM turns off the A/F sensor heater in fail-safe mode. Fail-safe mode continues until the ignition switch is turned OFF.
The ECM provides a pulse width modulated control circuit to adjust the current through the heater. The A/F sensor heater circuit uses a relay on the +B side of the circuit.

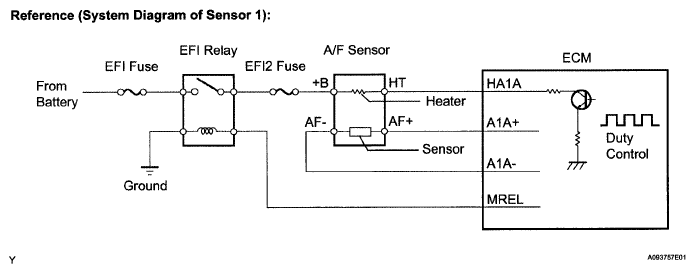

Fig 1: Oxygen Sensor 1 System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DTC DETECTION CONDITIONS AND TROUBLE AREA REFERENCE

DTC No.	DTC Detection Conditions	Trouble Areas
P0031	A/F sensor heater current is less than 0.8 A (1 trip detection logic)	Open in A/F sensor heater circuit A/F sensor heater EFI relay ECM
P0032	A/F sensor heater current is more than 10 A (1 trip detection logic)	Short in A/F sensor heater circuit A/F sensor heater EFI relay ECM
