Side Turn Signal Light Assembly: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY  . Refer to REMOVAL - Step 1
  2. REMOVE OUTER MIRROR COVER  . Refer to REMOVAL - Step 2
  3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY
    1. Disconnect the connector.

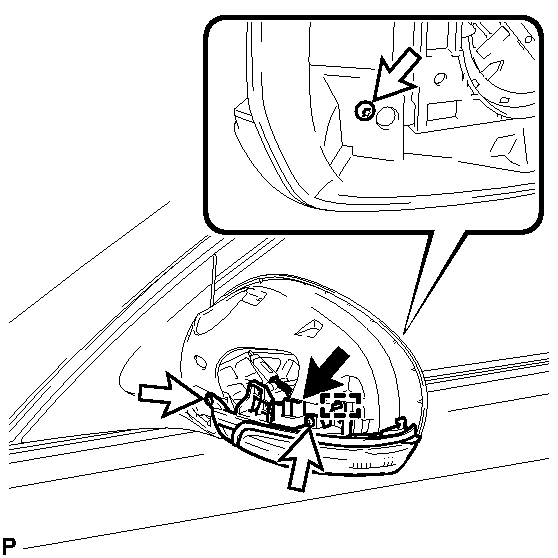

      Fig 1: Locating Side Turn Signal Light Assembly Fasteners
      GTY303055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T20 "TORX" socket wrench, remove the 3 screws.
    3. Disengage the guide and remove the side turn signal light assembly.
