Inspection Procedure

NOTE:
  • When replacing the tire pressure warning ECU, read the IDs stored in the old ECU using Techstream and write them down before removal.
  • It is necessary to perform initialization (See INITIALIZATION  ) after registration (See REGISTRATION  ) of the transmitter IDs into the tire pressure warning ECU if the ECU and/or any of the valve and transmitters have been replaced.
  1. READ OUTPUT DTC (DTC C2173/73)
    1. Turn the ignition switch to the LOCK position.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch to the ON position and turn the tester on.
    4. Enter the following menus: Chassis / Tire Pressure Monitor / Trouble Codes.
    5. Read the DTCs.

      Result

      RESULT REFERENCE

      Result Proceed to
      DTC C2173/73 is not output A
      DTC C2173/73 is output B
      NOTE: When DTC C2173/73 is output, troubleshoot that DTC first. Then troubleshoot DTCs C2121/21 to C2124/24.

    B: GO TO DTC C2173/73

    A: Go to next step.

  2. CHECK FREQUENCY RECEIVING CONDITION
    1. Check that the vehicle is located in an area such as described below:
      1. Facilities or devices that use similar radio frequencies are located in the vicinity of the vehicle.

        HINT:

        If the vehicle is located in an areas described above, the tire pressure warning light may turn on only in a particular area due to interfering radio frequencies.

      2. Devices using similar radio frequencies are used in the vehicle.

        OK: Facilities, or devices that use similar radio frequencies are not located in the vicinity of the vehicle.

        HINT:

        Radio transmissions may be interrupted due to the surroundings, or devices installed by the user.

    NG: CHECK IF ANY DEVICE IS INSTALLED BY USER

    OK: Go to next step.

  3. IDENTIFY TRANSMITTER CORRESPONDING TO DTC
    1. Set the tire pressure to the appropriate specified values (See TIRE PRESSURE WARNING SYSTEM  ).
    2. Turn the ignition switch to the LOCK position.
    3. Connect Techstream to the DLC3.
    4. Turn the ignition switch to the ON position and turn the tester on.
    5. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
    6. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE MONITOR ITEM RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure/min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID2 Tire Inflation Pressure ID2 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID3 Tire Inflation Pressure ID3 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID4 Tire Inflation Pressure ID4 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      HINT:
      *: It may take about 2 or 3 minutes until the values are displayed.
    7. Rapidly reduce the tire pressure for each wheel by at least 40 kPa (0.4 kgf/cm2 , 5.8 psi) within 30 seconds.
    8. Check the DATA LIST
      NOTE:
      • It takes about 2 or 3 minutes to display the updated tire pressure data.
      • When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270°. Then rapidly release the tire pressure and recheck the data.
      • Record the "ID Tire Inflation Pressure" data transmitter ID that corresponds to each tire.
    9. After confirming that the "ID Tire Inflation Pressure" data for one tire (ID1 to ID4) has changed, repeat this procedure one by one. Identify the transmitter that corresponds to the DTC.

      Result

      RESULT REFERENCE

      Condition Proceed to
      All abnormal A
      One or more of transmitters abnormal B
      All normal C

    B:  Go to step  5

    C: END

    A: Go to next step.

  4. CHECK HARNESS AND CONNECTOR (ECU - RECEIVER)
    1. Disconnect the T11 ECU connector.

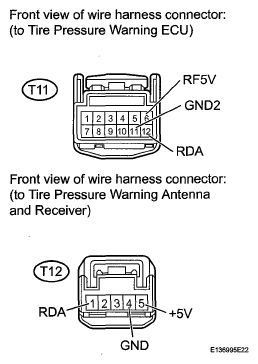

      2. Fig 1: Identifying T11 ECU Connector Terminal And T12 Receiver Connector Terminal
      G05575836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the T12 receiver connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      T11-12 (RDA) - T12-1 (RDA) Always Below 1 Ω
      T11-11 (GND2) - T12-4 (GND) Always Below 1 Ω
      T11-6 (RF5V) - T12-5 (+5V) Always Below 1 Ω
      T11-12 (RDA) or T12-1 (RDA) - Body ground Always 10 kΩ or higher
      T11-11 (GND2) or T12-4 (GND) - Body ground Always 10 kΩ or higher
      T11-6 (RF5V) or T12-5 (+5V) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  5. CHECK TRANSMITTER ID
    1. Turn the ignition switch to the LOCK position.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch to the ON position and turn the tester on.
    4. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
    5. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE MONITOR ITEM RANGE REFERENCE

      Tester Display Measurement Item/Display Normal Condition Diagnostic Note
      Registered ID1 Code Registered ID1 code/min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID1 is displayed *: Displayed only when the ID No. is not registered.
      Registered ID2 Code Registered ID2 code/min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID2 is displayed *: Displayed only when the ID No. is not registered.
      Registered ID3 Code Registered ID3 code/min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID3 is displayed *: Displayed only when the ID No. is not registered.
      Registered ID4 Code Registered ID4 code/min.: 0
      max.: FFFFFFF*      		 The ID No. registered in the transmitter ID4 is displayed *: Displayed only when the ID No. is not registered.
    6. Check the ID number on the identified transmitter by removing it from the tire and wheel.
      Fig 2: Identifying Transmitter ID Number On Tire Pressure Warning Valve
      G05001340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Confirm that the ID number on the transmitter and recorded transmitter ID match.

      Result

      RESULT REFERENCE

      Result Proceed to
      Match A
      Do not match B

    B:  Go to step  7

    A: Go to next step.

  6. REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER
    1. Replace the tire pressure warning valve and transmitter (See REMOVAL  ).
  7. REGISTRATION OF TRANSMITTER ID
    1. Perform registration (See REGISTRATION  ).
  8. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION  ).
  9. CONFIRM TIRE INFLATION PRESSURE (DATA LIST)
    1. Turn the ignition switch to the LOCK position.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch to the ON position and turn the tester on.
    4. Enter the following menus: Chassis / Tire Pressure Monitor/Data List.
    5. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE MONITOR ITEM RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure/min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID2 Tire Inflation Pressure ID2 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID3 Tire Inflation Pressure ID3 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID4 Tire Inflation Pressure ID4 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      HINT:
      • *: It may take about 2 or 3 minutes until the values are displayed.
      • When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270°. Then rapidly release the tire pressure and recheck the data.

      Result

      RESULT REFERENCE

      Result Proceed to
      Tire pressure values are not displayed. A
      All tire pressure readings are equal to specified values. B

    B : END

    A: Go to next step.

  10. REPLACE TIRE PRESSURE WARNING ANTENNA AND RECEIVER
    1. Replace the tire pressure warning antenna and receiver (See REMOVAL  ).
  11. CONFIRM TIRE INFLATION PRESSURE (DATA LIST)
    1. Turn the ignition switch to the LOCK position.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch to the ON position and turn the tester on.
    4. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
    5. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE MONITOR ITEM RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure/min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID2 Tire Inflation Pressure ID2 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure/ 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID3 Tire Inflation Pressure ID3 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID4 Tire Inflation Pressure ID4 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      HINT:
      • *: It may take about 2 or 3 minutes until the values are displayed.
      • When the "ID Tire Inflation Pressure" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270°. Then rapidly release the tire pressure and recheck the data.

      Result

      RESULT REFERENCE

      Result Proceed to
      All tire pressure readings are equal to specified values. A
      Tire pressure values are not displayed. B

    B : REPLACE TIRE PRESSURE WARNING ECU (See  REMOVAL   )

    A : END
