Transmission Control Cable Assembly: Components

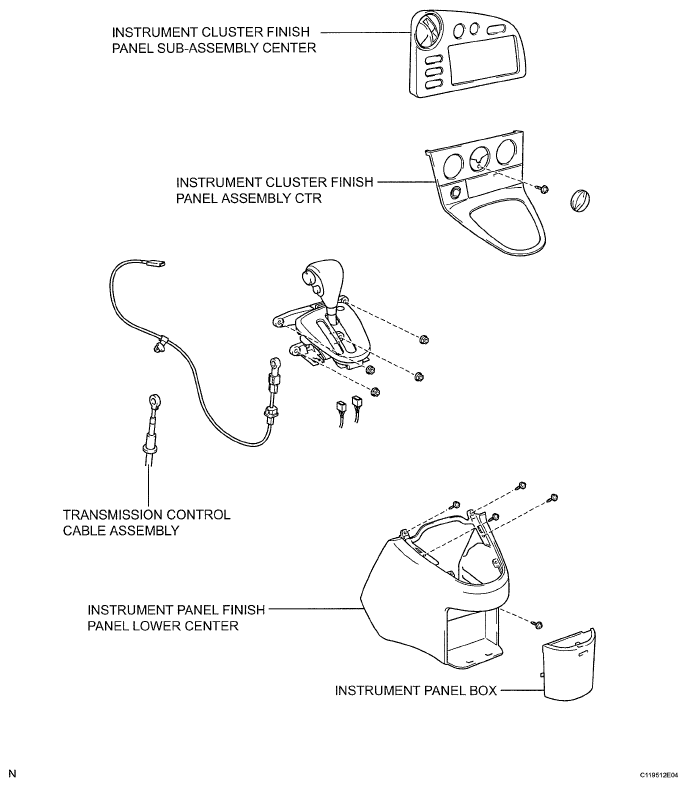

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components (1 Of 4)
G05575264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

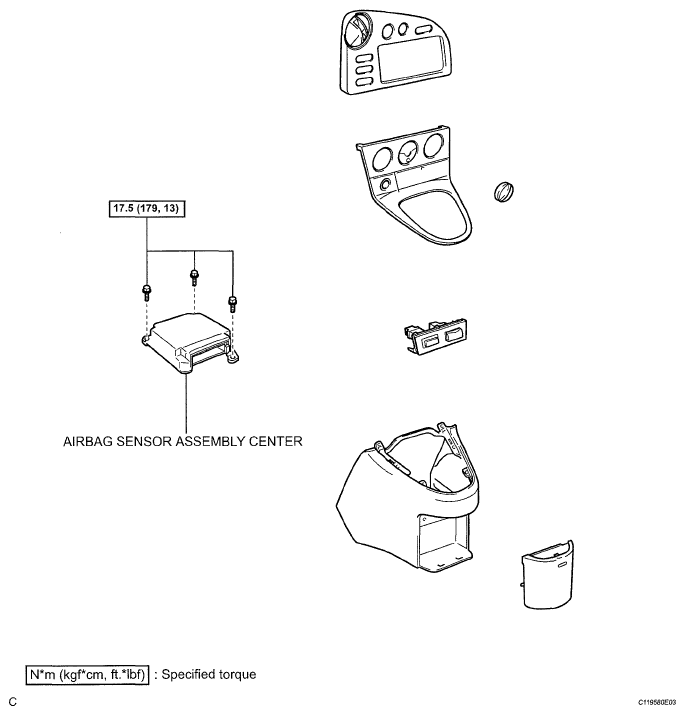

Fig 2: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specification (2 Of 4)
G05575265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 4)
G05575266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specification (4 Of 4)
G05575267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
